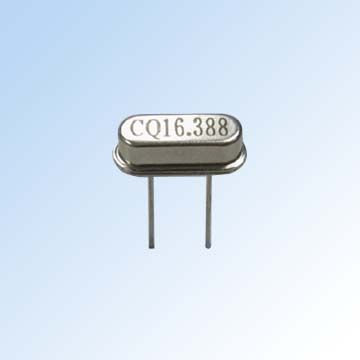

Quartz crystal unit (HC-49U/S)

Quartz crystal unit (HC-49U/S), HC-49U/S (2 terminals and 3 terminals)
Item Code / Model Number:
HC-49U/S (2 terminals and 3 terminals)

Quartz crystal unit (HC-49U/S) Quartz crystal unit (HC-49U/S)
Package 1: HC-49U/S (two terminals, height: 3.38mm, 2.8mm, 2.5mm)
Package 2: HC-49U/S (three terminals, height: 4.5mm, 2.8mm, 2.5mm)
Frequency range: 3.200MHz to 100.000MHz
Frequency tolerance (at 25C):10ppm to 100ppm
Frequency drift: 10ppm to 100ppm
Operating temperature range: -10C ~ +60C to -40C ~ +85C
Storage temperature range: -40C ~ +85C to -55C ~ +125C
Aging (at 25C): +/-5ppm/year max.
Shunt capacitance: 7pF max.
Drive level: 100uW (typical)
Insulation resistance: 500Mohms min.(at DC100V)
Load capacitance: Suggested by customer
  • Place of Origin:
  • China
  • Price Terms:
  • FOB Hong Kong
  • Packing:
  • Products are available in thru-hole, SMD, or tape packing
  • Payment Terms:
  • L/C;T/T
  • Delivery Time:
  • 45-60 days
  • Min Order Quantity:
  • 1K pcs
  • Keywords:
  • quartz crystal, quartz crystal unit, electronic component

Company Profile

  • Business Type:
  • Manufacturer
  • Country:
  • Hong Kong (China)
  • Employee Count:
  • 1000
  • Established Year:
  • 1988
  • Brands:
  • CQ
  • OEM:
  • YES
  • ODM:
  • NO
  • Existing Markets:
  • U.S.A, Europe, Japan, etc.
  • R&D Department:
  • YES
  • Factory Location:
  • Jiangsu Province, China
  • Production Leadtime:
  • 45-60 days
  • Monthly Productivity:
  • Depends on items
  • Certificates:
  • ISO 9001, 9002, 14001, TS16949
  • Strengths:
    1. We have a full range of frequency control components for customers to choose from
    2. Starting from KHz and up to GHz, we can also provide standard as well as custom-designed components to meet customers' requirements
