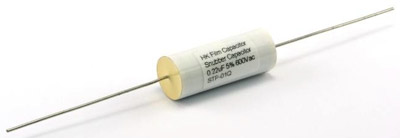

Snubber Capacitor - Axial leads

- Snubber Capacitor for direct Printed Circuit Board soldering.
- high dv/dt & RMS Current
- stable and long capacitor life
Typical Application :
- absorb transient voltage and current from power semiconductor
- Application where high dv/dt is encountered
- Very Low Loss and low inductance
- medium ripple capacitor current capacity
- medium frequency range
- SMPS Snubbering circuit
- direct Printed Circuit Board soldering installation

Electrical Characteristic :
- Double metallized internal serial film + Polypropylene film dielectric

- rated Voltage range :
Vdc 600 850 1000 1200 2000 3000
Vac 275 450 500 500 630 750
- Capacitance : 0.01uF ~ 4.7uF
- Capacitance Tolerance: 5% / 10%
- Testing Voltage: 1.6*rated voltage for 60 seconds 25C
- Temperature range: -25C~+85C / -25~+105C
- high dv/dt, Peak Current Ipp and RMS Current Irms
