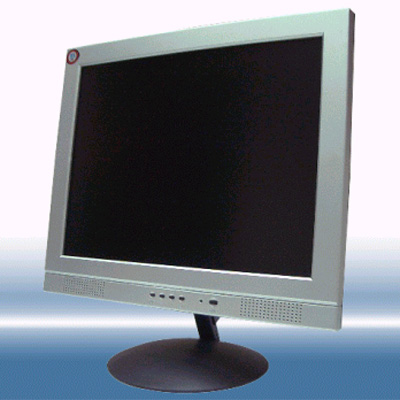

15" TFT-LCD

Item Code / Model Number:

TL-15

Pixel Pitch: 0.297(H)�0.297(V)mm
Display Area (H�V): 304.1�228.1 mm
Resolution: XGA 1024�768 @75hz(Maximum)
Contrast Ratio: 400:1Typ
Brightness: 250 Cd/m2
Response Time: Tr:3ms,Tf:22ms (25ms)
Display Color: 262K
Viewing Angle: H:120 V:UP45-DOWN55
Connector: Analog:15-pin D-Sub
Control Button: Power, Auto Adjust, Menu, up, down
OSD Operation : Contrast, Brightness, Clock, Phase, H-Position, V-Position, Recall, Auto adjust, Sharpness, Color, Language, OSD Adjustment, Volume, Recall
Speaker: 2watt x 2
Power Source: 100 ~ 240v
Dimension: 420(H) �430(W) �200(D)
Power Consumption: 30W(Typ)
Certificates: CB, CE, FCC, TCO99
