1/3" Sharp Digital Image Video Dome Camera
1/3" Sharp Digital Image Video Dome Camera, KT-T940Item Code / Model Number:
KT-T940

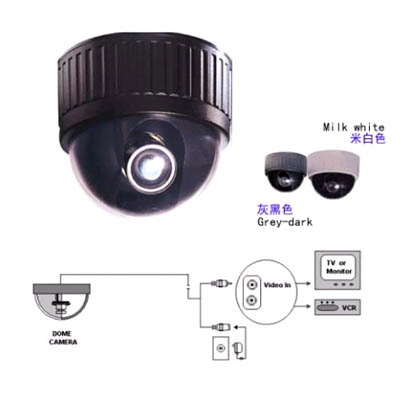

1/3 inches Sharp Digital Image Video Dome Camera
1/3" CCD image sensor
Pixels:PAL=500(H) x 582(V)
TV system: PAL
Sensitive area:4.8 x 3.6(mm)
Syn.system: internal
Resolution:350TV Line
Min illumination:0.8Lux/F1.2
S/N: more than 48dB(AGC off)
AGC: on/off switch
BLC: on/off switch
AWB: auto AWB
Electronic shutter:1/50-1/100,000 sec. on/off
Auto iris:Video/DC driver
Video output:BNC 1.0Vp-p 75ohm
Power supply:DC12V
LENS Mount:C/CS
Weight:380g
Dimension: 120(D) x 100(H)mm
Operating temp.:10 to +50 centigrade degree
Storage temp.:-20 to +60 centigrade degree
Pixels:PAL=500(H) x 582(V)
TV system: PAL
Sensitive area:4.8 x 3.6(mm)
Syn.system: internal
Resolution:350TV Line
Min illumination:0.8Lux/F1.2
S/N: more than 48dB(AGC off)
AGC: on/off switch
BLC: on/off switch
AWB: auto AWB
Electronic shutter:1/50-1/100,000 sec. on/off
Auto iris:Video/DC driver
Video output:BNC 1.0Vp-p 75ohm
Power supply:DC12V
LENS Mount:C/CS
Weight:380g
Dimension: 120(D) x 100(H)mm
Operating temp.:10 to +50 centigrade degree
Storage temp.:-20 to +60 centigrade degree
