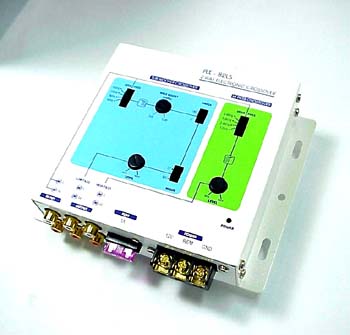

2-WAY ELECTRONIC CROSSOVER

* DC TO DC CONVERTER POWER SUPPLY. * S/N RATIO : 110dB. * CHANNEL SEPARATION : 80dB * DISTORTION : THD @ 0.01% * CROSSOVER SLOPE : 12dB PER OCTAVE * INPUT IMPEDANCE : 20K Ohms * OUTPUT IMPEDANCE : 100 Ohms * OUTPUT GAIN : 1 : 2 (+6dB) * OUTPUT VOLTAGE LEVEL : 5 VOLTS MAX. * LED POWER ON INDICATOR. * DIMENSION ; 160 X 130 X 37 MM . HIGH PASS CHANNEL * HIGH PASS FREQUENCY SELECTOR 120, 2.4K, 3.5K, 6.4KHz * SIGNAL GAIN CONTROL. SUB-WOOFER CHANNEL * LOW PASS FREQUENCY SELECTOR 40, 80, 120, 180Hz. * 45Hz BASS BOOST CONTROLER ... 0 TO 12dB. * PHASE INVERSION SWITCH. * STEREO / MONO SELECTOR SWITCH ON. * ROTARY GIAN CONTROL. Packing A> 10SETS PER EXPORT CARTON B> MEASUREMENT : 40.5 x 40 x 26.5 cm / CARTON, G.W. 8.7KG/CARTON C> MINI ORDER QTY.: 500SETS D> PAYMENT TERM : BY AT SIGHT L/C E> DELIVERY : 60DAYS AFTER RECEIVED AR SIGHT L/C

• Place of Origin:
• CHINA
