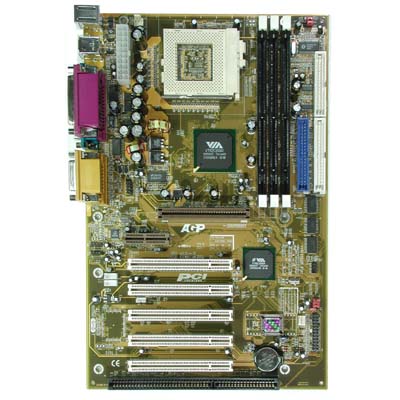

Motherboard
Motherboard, TD962Item Code / Model Number:
TD962
Motherboard
- Processor
- Intel� Pentium� II/III & CeleronTM (66/100/133Mhz Front Side Bus) (PGA370 TYPE)
- 300/333/350/366/400/433/450/466/500/533/550/600/650/667/700Mhz or above Chip Set
- VIA� Apollo PRO133 (694X686A) BIOS
- 2M Flash EPROM (Support PnP, APM,ACPI,ATAPI,DMI)
- IDE AUTO LBA Mode Supports HDDs over 8.4GB
- Trend Micro ChipAway Virus Protection Cache
- L2 Cache is CPU Built-in Memory
- Size up to 768MB
- Tree 168-pins DIMMs On Board I/O
- Support Two PCI Enhanced IDEs PIO Mode 3, Mode 4 and Ultra DMA 33/66 Channels. (Optional Ultra DMA66 Cable at extra cost). Twin Headers for 4 IDE devices Including IDE HDDs and CD ROMs.
- Support Two FDDs of 360KB, 720KB, 1.2MB, 1.44MB or 2.88MB.
- One ECP/EPP Parallel Port, Two 16550A UART Serial Ports, Four USD Ports,(TWO USB PORTS REQUIRE ADAPTOR CABLE AT EXTRA COST)
- PS/2 Mouse Port, PS/2 Keyboard Port On Board Sound
- Integrated AC97 Controller with Standard AC97 Codec.
- Pnp,Full-Duplex,Sound Blaster 16 Compatible, Direct Sound Ready.(Optional at extra cost)
- -Line-in,Line-out,Mic-in and MIDI/Game Port. Hardware Monitoring(Optional)
- Voltage,Temperature,Fan Speed Monitoring, CPU Over Heat Protection. Expansion Slot
- One ISA Bus Slots(One PCI Shared Slot). Five PCI Bus Slots(One ISA Shared Slot).
- One Accelerated Graphics Port(AGP). One Audio Modem Riser (AMR) Plug and Play
- Plug and Play Specification 1.1
- Plug and Play for DOS�, Windows� 3.x, and Windows� 95 PC97/98
- PC97/98 Ready,PC99 Color Connector. Power Management
- Support SMM,APM and ACPI
- Comply to Energy Star "Green PC" Program
- Supports Modem Ring-in Wake up PCI
- PCI 2.1 AGP
- AGP 1.0 VRM
- On Board VRM 8.4 Battery
- On-board Lithium Battery Others
- CPU Frequency Multiplier Jumperless(optional)
- Alarm Wake-up
- Bundle "PC-cillin 6" Anti Virus Software Board Size
- 305mm x 185mm, ATX Form Factor
