Disc Type Thermostat

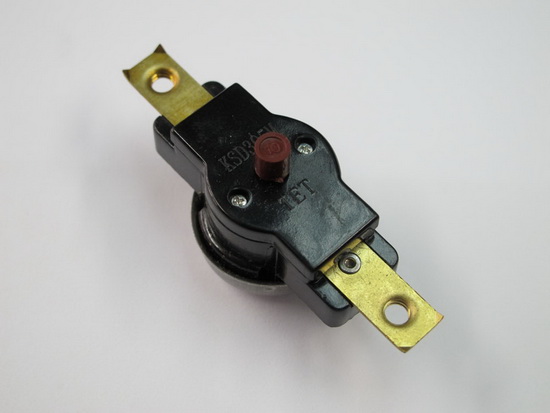

Disc Type Thermostat, KSD305MItem Code / Model Number:
KSD305M
Disc Type Thermostat
Application
For use in household or industrial appliances, HVAC and office equipment such as: coffee maker, jug kettle, Water heater, dishwasher, gas furnace, clothes dryer, etc
Specifications
Function : Electrical contacts open/close on temperature rise. When we push the reset button, the contacts will return to the original state.
Housing Material : Phenolic Resin (PF)
Standard Rating
[ UL & CUL ] 125V AC 30A
[ TUV ] 250V AC 20A
[ CQC ] 250V AC 40A
Number of Automatic Cycles for each Automatic Action:
[ UL & CUL ] 6,000 cycles
[ TUV ] 3,000 cycles
[ CQC ] 6,000 cycles
Maximum Temperature :
[ UL & CUL ] 140℃
[ TUV ] 120℃
[ CQC ] 150℃
Temperature Setting Range :
[ UL & CUL ] 0℃ - 145℃
[ TUV ] 0℃ - 120℃
[ CQC ] 0℃ - 150℃
Tolerance of Operation Range : ± 5℃~± 10℃
Standard Terminals
Standard terminals are suitable for 6.3mm receptacles or M4 screw.
Approval
UL / CUL TUV / CE CQC
For use in household or industrial appliances, HVAC and office equipment such as: coffee maker, jug kettle, Water heater, dishwasher, gas furnace, clothes dryer, etc
Specifications
Function : Electrical contacts open/close on temperature rise. When we push the reset button, the contacts will return to the original state.
Housing Material : Phenolic Resin (PF)
Standard Rating
[ UL & CUL ] 125V AC 30A
[ TUV ] 250V AC 20A
[ CQC ] 250V AC 40A
Number of Automatic Cycles for each Automatic Action:
[ UL & CUL ] 6,000 cycles
[ TUV ] 3,000 cycles
[ CQC ] 6,000 cycles
Maximum Temperature :
[ UL & CUL ] 140℃
[ TUV ] 120℃
[ CQC ] 150℃
Temperature Setting Range :
[ UL & CUL ] 0℃ - 145℃
[ TUV ] 0℃ - 120℃
[ CQC ] 0℃ - 150℃
Tolerance of Operation Range : ± 5℃~± 10℃
Standard Terminals
Standard terminals are suitable for 6.3mm receptacles or M4 screw.
Approval
UL / CUL TUV / CE CQC
