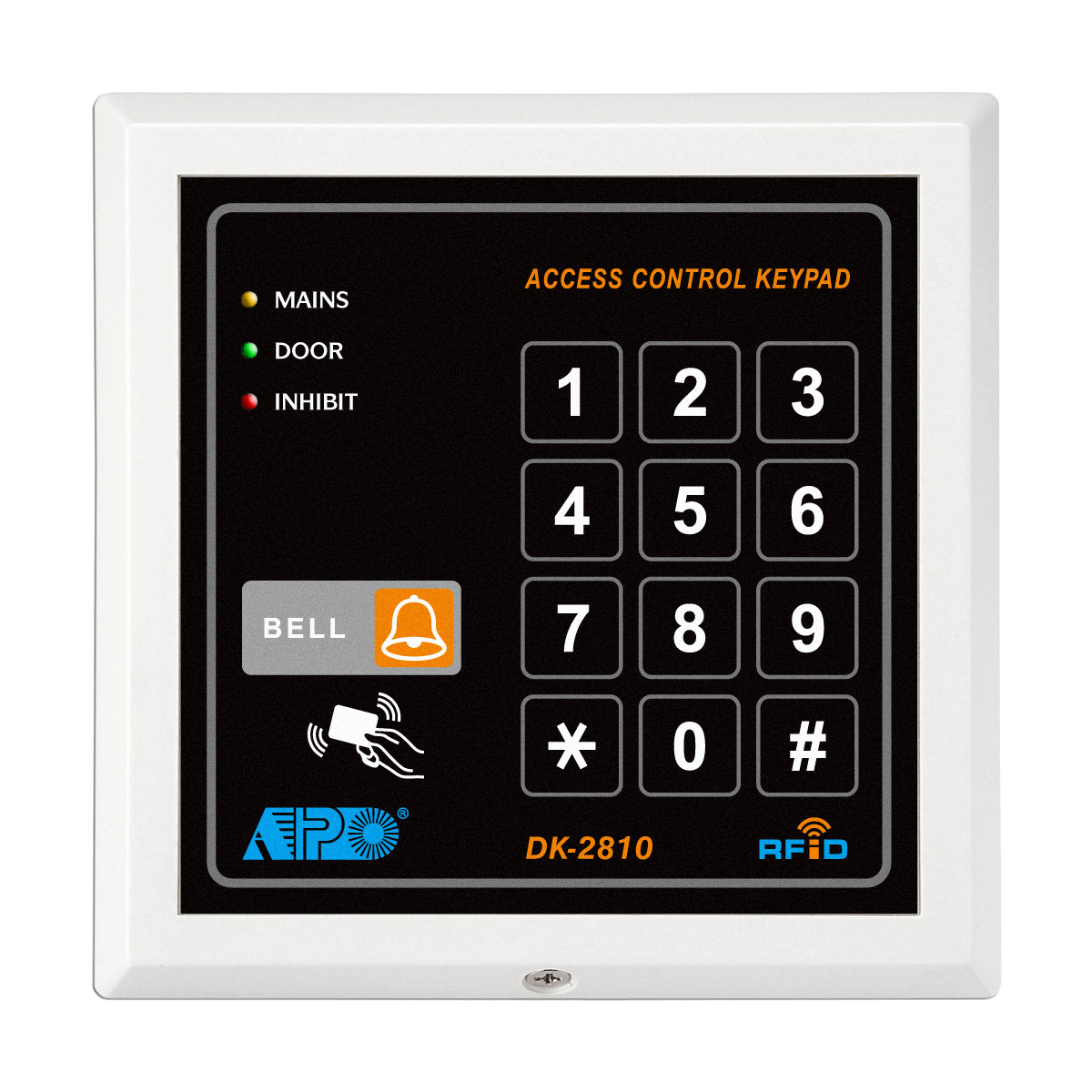

The Popular Version Card Reader Keypad Of The Dk-2810

The DK-2810 is an economy self-contained single relay output keypad. It combines the functions of digital keypad and proximity EM card reader in one unit designed for stand alone operation.
It is an ideal keypad mainly for Door Strike in access control or Arm-Disarm Control of an alarm system. It can also be a programmable industrial timer (with the timing of 1 second to over 24 hours) for Automatic Operator Systems.

The Features:
＊1,000 User PINs and/or Proximity EM Cards
＊50 Visitor Codes with Programmable Valid Time
＊User Controlled Lockup on After-Office-Hours or Nobody at Home
＊Intelligent Egress Button with Programmable Conditions for door lock strike for "Going Out"
＊ON-OFF Programmable for The Pacifier Tones & The Status Flashing LED
＊Compatible with Fail-safe & Fail-secure Electric Locks
＊Multi Combinations of PIN-Card for Each User
＊Programmable Number of False Trials for System Lockup
＊Auto or Manual Code Entry
＊Dual Level Back-lit Keyboard (Except The DK-2810)
＊12VDC Nominal, 11-15VDC Operation
＊-20 Deg C to +70 Deg C
＊5-95% Relative Humidity, Non-condensing
＊ABS Plastic Housing
＊Operating Current: 50mA (Quiescent); 120mA Max.
＊Weight : 180gs
＊Dimensions : 117(H) X 117(W) X 21(D) mm
