8-ZONE 2-PARTITION ALARM CONTROL PANEL

HA-263K is a high performance local alarm control panel with 8 hardware protection zones in two partitions. The main advantage of it is all the main features are accomplished by direct jumper settings on the main circuit board. It is absolutely simple to set up and no learning is required. It is an ideal system for both �Do-It-Yourself? and professional users.

The system is designed with two partitions in one enclosure. The two partitions are independently controlled for arm-disarm with two key switches just like two alarm control panels, which gives the maximum flexibility for users convenience and protection arrangement. The lobby protection zone in the Common Partition is armed while both partition 1 and 2 are armed to give maximum protection; and it is disarmed while one of the partition is disarmed. This allows either partition to arm, while leaving the lobby for access into the other partition.

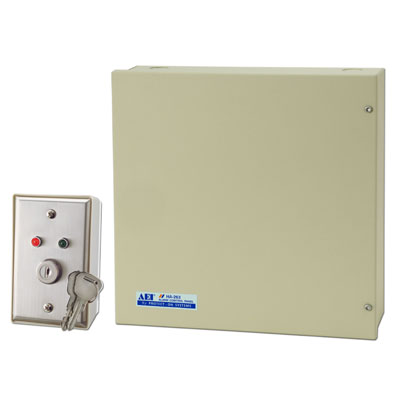

The HA-263K comes with one Key Switch Control Station for combined arm-disarm control of the whole system. Independent control of the two partitions requires two key switch control stations. The system can also work with key-switch and Digital Keypad in mixed operation.

The HA-263K is the replacement of the old models HA-841, and HA-863

FEATURES & SPECIFICATIONS
� Arm-disarm Controlled by Key Switch Control Station
� 8 Zones in Two Partitions
� Independent Control for Partition 1, 2, & The Whole System
� Programmable Time for Entry Delay and Alarm Duration
� Protection Zones Are 500mS Response Time
� Exit and Entry Warning Beeps On-Off Options
� Arm-Disarm Ring Back Indication On-Off Options
� Built-in Dynamic Battery Charger and Tester with Auto Testing
� Maximum 4 Control Keypads or Key Switches Can Be Connected
� Forced to Arm with The Faulty Zone(s) Bypassed
� Handover Option for The Instant Zones
� Facilities for Driving Siren/Bell, Satellite Siren and Strobe Light
� Power Low Watchdog Resets System
� Non-Volatile Memory
� 12V / 6.5Ah Back-up Battery (Not Included)
� 16.5VAC Operation
� Weight: 2.5 Kg (The Control Panel & The Key Switch Station)
� Dimensions: 270(H) X 265(W) X 78(D) mm (The Control Panel); 117(H) X 73(W) X 43(D) mm (The Key Switch Station)
