2-ZONE ALARM CONTROLLERS

AC-238 and AC-239 are economic 2-Zone alarm controllers designed for protecting small shops, homes, mobile homes and boats. Each controller comes with two basic protection zones of instant and delay, siren driver and relay output contact for setting up an effective protection system in minimum cost. The controllers consume very low power. They are ideal devices for use as an integral part of a battery operated security system.

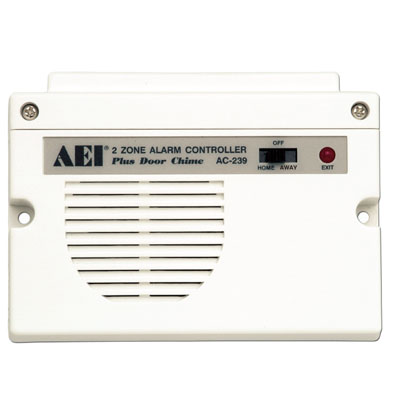

The AC-239 also comes with a built-in door chime and the AC-238 is the simplified version that does not incorporate the door chime.

FEATURES : AC-238 & AC-239:
� Two Independent Protection Zones of Instant & Delay
� Protection Zones Are End-Of-Line Resistor Supervised, Compatible with Both N.C. & N.O. Sensors
� 60 Seconds Exit Delay, 30 Seconds Entry Delay & 3 Minutes Siren Timers
� 12V DC Output Relay Contact Drives Other Alarm Devices
� Dimensions: 87(H) X 120(W) X 33(D) mm
� Weight: AC-238 : 145g, AC-239 : 180g

FEATURES : AC-239 ONLY
� Home or Away Operation
� Built-in Door Chime and Siren
� Facility for Remote Arm-Disarm Control
� Facility for Connection of Remote Status LED Indicator
� Facility for Connection of Bell Button for The Built-in Door Chime
