2 OUTPUT SINGLE RELAY DIGITAL ACCESS CONTROL KEYPAD

The main features of DK-9521 is exactly the same as like the DK-9522 except that the 1 Amp relay of Output 2 is replaced by an NPN transistor in open collector for auxiliary control purposes. It is an ideal keypad for those installations requiring electric door strike and having full feature door protection monitoring. A slim-line surface mount box in Beige color is supplied with each keypad. The box in Black color is also available on request when place order.

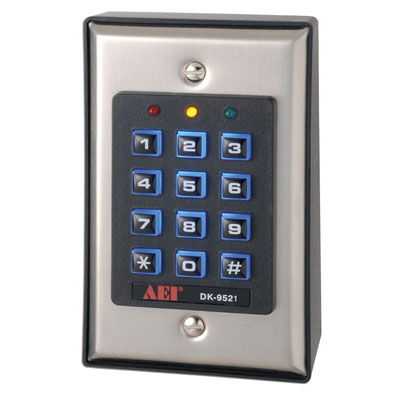

The DK-9521 is available in Back-lit keyboard or in Standard keyboard. The picture shown is a back-lit version.

FEATURES

* Direct 12-24V AC/DC Operation
* Over 100 Million Code Combinations
* 110 User Codes with 4-8 Digits
* Single Lock or Inter-lock Application
* Operates Fail-safe or Fail-secure Locking Device
* Door Lock Inhibit Authorization
* 2 Independent Outputs
* Door Forced Open and Propped-up Warnings
* Auto or Manual Code Entry
* Output Activation Announcer
* Pacifier Tone Inhibit Control
* Key Activation, Duress and Tamper Outputs
* Door Auto Re-lock after Valid Access Prevents �Tailgate Entry
* Egress Input for Door Remote Triggering
* All Features are Keyboard Programmable
* Non-volatile Memory in Power Failure
* Flush or Surface Mount
* Surface Mount Box in Beige (Standard Version) or Black (Back-lit Version)
* Size : 116(H) X 72(W) X 43(D) mm
