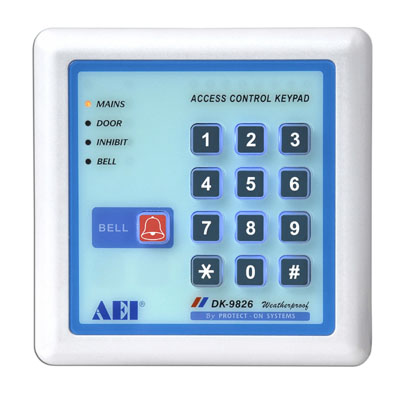

WEATHERPROOF, BACK-LIT SINGLE RELAY OUTPUT DIGITAL ACCESS CONTROL KEYPAD

DK-9826 is a simplified version of the DK-9827 mainly designed for stand-alone electric door lock striking purpose. Output 1 that is a 5 Amp rating relay provides both N.C. and N.O. dry contacts for door strike. It is virtually compatible with any electric locking devices of fail-safe and fail-secure. Its output 2 is internally connected for system inhibiting purpose to disable the system while it is not on duty, such as after office hours.
This simplified system also comes with built-in door bell button, weatherproof housing and back-lit keyboard with two brightness levels as like the DK-9827.

FEATURES

* Weatherproof Housing (IP-54) & 2 Brightness Level Back-lit Keyboard
* Direct 12-24V AC/DC Operation
* Over 100 Million Code Combinations
* 120 User Codes in 4-8 Digits
* 5 Amp N.C. & N.O. Output Relay Contact for Door Strike
* 1 Amp N.O. Output Relay Contact for Door Bell
* Operates Fail-safe or Fail-secure Locking Device
* Door Lock Inhibit Authorization
* Output Activation Announcer
* Pacifier Tone Inhibit Control
* Egress Input for Door Remote Triggering
* All Features are Keyboard Programmable
* Non-volatile Memory in Power Failure
* Slim Mounting Box in 117(H) X 117(W) X 27(D) mm
