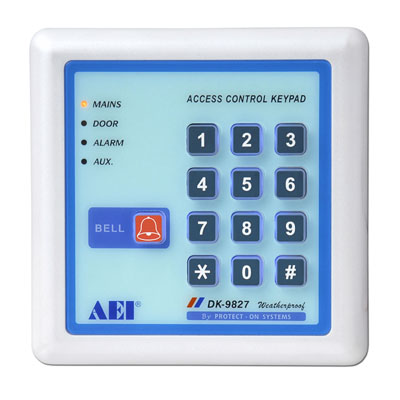

WEATHERPROOF, BACK-LIT FULL FEATURE 3 OUTPUT DUAL RELAY DIGITAL ACCESS CONTROL KEYPAD

DK-9827 is an universal, multi-purpose keypad. It consists of 3 outputs controlled by 3 groups of independent user codes. Output 1 that is a 5 Amp rating relay provides both N.C. and N.O. dry contacts for door strike, output 2 that is a 1 Amp rating relay provides both N.C. and N.O. dry contacts for security and other control purposes. The output 3 is an NPN transistor open collector output prepared for auxiliary applications, such as door strike inhibiting control.
The keypad works perfectly in both stand-alone electric locks and inter-lock systems for door strike. It is virtually compatible with any electric locks of fail-safe and fail-secure.
The system also comes with a 1 Amp current contact rating N.O. relay bell button, which suits for most of the external door bell connections.
The system is weatherproof and the keyboard is back-lit with two brightness levels. They get brighter instantly when a button is pressed and will last for 10 seconds on each action.

FEATURES

* Weatherproof Housing (IP-54) & Two Level of Brightness Back-lit Keyboard
* Direct 12-24V AC/DC Operation
* Over 100 Million Code Combinations
* 120 User Codes in 4-8 Digits
* Single Lock or Inter-lock Application
* Operates Fail-safe or Fail-secure Locking Device
* Door Lock Inhibiting Authorization
* 3 Independent Outputs
* 1 Amp Rating Relay Door Bell Contact
* Door Forced Open and Propped-up Warnings
* Auto or Manual Code Entry
* Output Activation Announcer
* Pacifier Tone Inhibit Control
* Key Activation, Alarm, Duress and Tamper Outputs
* Door Auto Re-lock after Valid Access Prevents �Tailgate Entry
* Egress Input for Door Remote Triggering
* All Features are Keyboard Programmable
* Non-volatile Memory in Power Failure
* Slim Mounting Box in 117(H) X 117(W) X 27(D) mm
