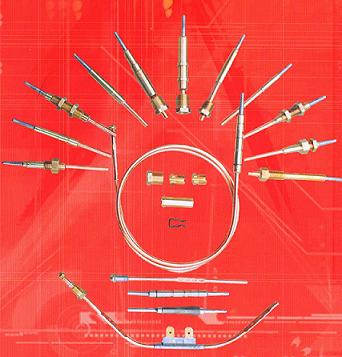

Black Teknigas Thermocouples

Black Teknigas Thermocouples
Item Code / Model Number:

Black Teknigas Thermocouples Black Teknigas Thermocouples
Universal Thermocouples to meet most applications in the domestic and commercial heating and catering markets, as well as some non-electric process equipment.
Models are available to operate with most makes of Thermo-Electric Valves and Pilot Burners and the Company has the ability to produce models to meet specifice O.E.M. requirements, including integral interrupters, where an over-heat thermostat or auxiliary control is utilised in a system. Universal Thermocouple packages, which are aimed at the replacement and service markets, are available in five standard lengths of 450mm, 600mm, 900mm, 1200mm and 1800mm, with additional adaptor kits to extend their versatility. Universal Thermocouples are also available aimed at the Gas Fire replacement market.
Technical Data
- Typical Operating Output-Off load : 30mV@600°C
- Typical Operating output-On load : 13mV@600°C
- normal working temperature range : 400°C to 600°C
giving optimum output, dropout time and life
- Maximum Operating Temperature - Outer Tip : 1000°C
- Maximum Drop-out-time, depending on application : Typically maximum 30 to 40 seconds.
- Minimum bend radius on Outer Connector : 15mm
- Torque requirement for nut connection into magnet : 3.0 Nm to 4.5 Nm (max)
  • Place of Origin:
  • Hong Kong
  • Price Terms:
  • FOB HK
  • Packing:
  • To be advise
  • Payment Terms:
  • T/T
  • Standard / Certificates:
  • ISO9001
  • Keywords:
  • thermocouple

Company Profile

Importer of Commercial gas equipment for LP-Gas and Natural Gas.

Regulators, Valves, Vaporisers, Meters, Thermocouples, Chemical Pumps, Hoses, Duct Sensors, Water Pumps, Solenoid Valves.

  • Business Type:
  • Manufacturer
  • Country:
  • Hong Kong (China)
  • Established Year:
  • 1983
  • R&D Department:
  • NO
  • Certificates:
  • ISO 9001
  • Strengths:
    1. Competitive price
    2. Own design team
    3. ISO 9001
