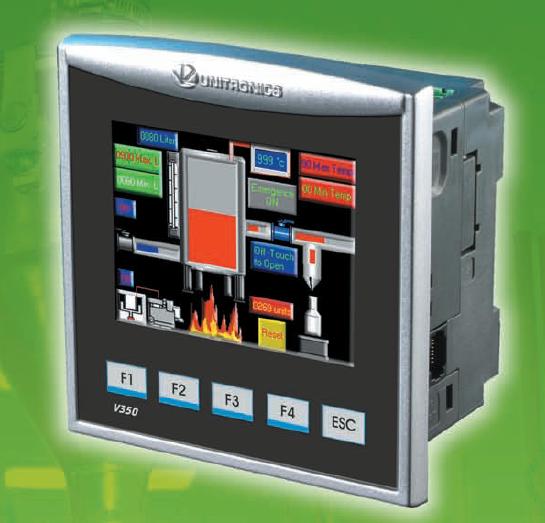

Unitronics OPLC V350
Automate Control Engineering Ltd.
I/O options: via onboard and expansion modules
I/O types: Digital (including shaft-encoder inputs & PWM outputs), Analog, & Temperature measurement
Application Logic: 1MB ; Fonts: 512K ; Images: 3MB
Scan time: 15µsec per 1K of typical application
Up to 24 built-in PID loops, including auto-tune
Recipe programs and datalogging via Data Tables
HMI
3.5" 256-Color Touchpanel, QVGA TFT display.
Display touchable images, text and graphs according to real-time conditions and historical values.
Touch properties can be assigned to all text and graphic on-screen elements.
Data entry/modification via keypad.
Up to 1024 user-designed displays and 250 images per application.
255 variables per display; link up to 150 images/messages to each variable.
LCD illuminated screen
Image library containing hundreds of images
Virtual keyboard
Info mode: view/modify I/O status, integer values, and system data via the panel
Communications
Ethernet via TCP/IP port (optional)
GSM/SMS support
Remote access for data acquisition and program download
MODBUS (master/slave)
CANbus and UniCAN (optional)
OPC/DDE server
Adaptable to most TCP/IP/serial protocols
Our HMI/PLC programming software and software utilities are free to all Unitronics clients.
Automate Control Engineering Ltd.
I/O options: via onboard and expansion modules
I/O types: Digital (including shaft-encoder inputs & PWM outputs), Analog, & Temperature measurement
Application Logic: 1MB ; Fonts: 512K ; Images: 3MB
Scan time: 15µsec per 1K of typical application
Up to 24 built-in PID loops, including auto-tune
Recipe programs and datalogging via Data Tables
HMI
3.5" 256-Color Touchpanel, QVGA TFT display.
Display touchable images, text and graphs according to real-time conditions and historical values.
Touch properties can be assigned to all text and graphic on-screen elements.
Data entry/modification via keypad.
Up to 1024 user-designed displays and 250 images per application.
255 variables per display; link up to 150 images/messages to each variable.
LCD illuminated screen
Image library containing hundreds of images
Virtual keyboard
Info mode: view/modify I/O status, integer values, and system data via the panel
Communications
Ethernet via TCP/IP port (optional)
GSM/SMS support
Remote access for data acquisition and program download
MODBUS (master/slave)
CANbus and UniCAN (optional)
OPC/DDE server
Adaptable to most TCP/IP/serial protocols
Our HMI/PLC programming software and software utilities are free to all Unitronics clients.
- Place of Origin:
- Israel
- Brand:
- Unitronics
- Port:
- FOB Hong Kong
- Payment Terms:
- ;T/T
- Payment Remarks:
- Western Union
- Delivery Time:
- Ex - stock
- Min Order Quantity:
- 1 set
