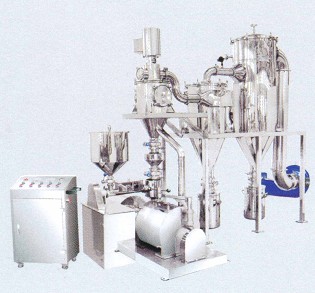

Pharmaceutical Machine-powder Pulverator

The series fine powder pulverator is based on the advance technology and integrated the ways of lashing, shearing and milling,suitable for pulverizing many kinds of herbs and many other materials. They can alao be widely ussed for food and chemicals.


Features:
Design of GMP
Large range of material pulverizing ,superfine powder
Unique classifying technology ,high classfying accuracy
Several temperature decrease methods, low working temperature
Fully closed working condition
High output, low power concumption

Main tech data:
Model Twf-180 Twf-350 Twf-450 Twf-550 Twf-650
Capacity(kg/h) 3-15 10-40 20-80 60-120 80-200
Main axis ratating(rpm) 3000 3000 3000 3000 3000
Feeding fineness(mm) less6 less6 less6 less6 less6
Fineness of powder(mesh) 80-300 80-300 80-300 80-300 80-300
Total power (kw) 4.45 16.5 29.5 49 67
Pulverizing motor power(kw) 1.5 11 22 37 55
Classifying motor power(kw) 0.75 1.5 3.5 4.5 4.5
Draught fun motor power(kw) 2.2 4 4 7.5 7.5
Overall dimension(mm) L
W
H 2000
7700
1500 5450
2600
2750 6000
2800
3000 8500
3500
3700 8700
3500
4100
Weight(kg) About 700 About2200 about2800 about3500 about4000
