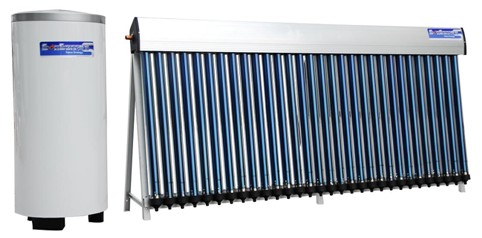

Balcony Solar Water Heater

·Pipeline is made of all red copper and conducted by heat transfer medium liquid
·To save place and simple to install
·Suitable for families who can not put vacuum tubes on their roofs
·Stable and reliable performance
·Fashionable and beautiful
·It is harmoniously blended with architecture
·Environmental protection and energy saving

* Material
a) Inner water tank: imported SUS304 stainless steel
b) Outer water tank: galvanized steel alloy
c) Bracket: aluminium alloy

* Solar vacuum tube with heat pipe
a) Size: 58 x 850mm
b) Qty: 8 / 10 / 12pcs
c) Hail resistance: diameter 25mm

* Temperature insulation layer
a) 50mm thickness imported polyurethane, machinery overall for keeping same temperatureand high pressure foam
b) temperature conservation: 72 hours* Capacity: 80 / 100 / 120 liters

* Max. pressure bearing: 0.6MPa
* ISO9001 / CE certificate/EN-12975
* 3 years international responsibility for free repairing or exchange due to original quality problems
