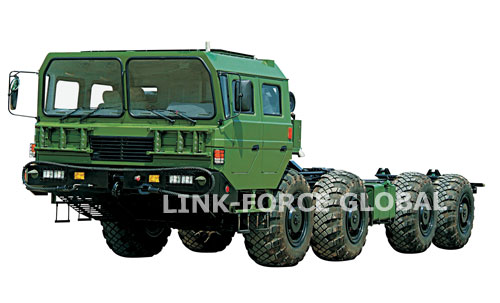

Sell Super heavy-duty off-road chassis

Item Parameters
Drive Type 8 X 8
Size Parameters Total Length (mm) 11435
Overall width (mm) 3050
Overall height (mm) (full load) 2970
Wheelbase Ⅰ - Ⅱ (mm) 2200
Ⅱ - Ⅲ (mm) 3300
Ⅲ - Ⅳ (mm) 2200
tread (no-load) (mm) 2375
Quality Parameters Curb Weight (kg) 19000
Total mass full load (kg) 41000
Maximum Capacity mass (Kg) 22000
Maximum Speed (Km/h) 75
Performance Parameters Maximum climbing degree (%) 60
Maximum in gradient (%) 30
100Km Fuel consumption on constant velocity condition (L/100Km) 70
Highway continued driving distance(Km) 650
Braking distance with a muzzle velocity of 30km / h (m) ≤12
Approach Angle (°) (full load) 27
Departure angle (°) (full load) 　 36
Minimum ground clearance (mm) 　 400
Minimum turning diameter (m) 29
Maximum wading depth (m) 1.2
Maximum groove width (go across)(m) 2.5
Vertical obstacle high (m) 0.5
