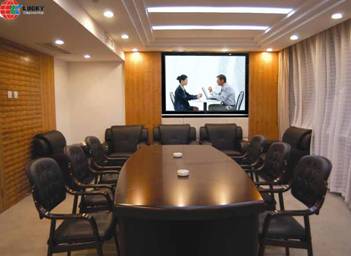

P6mm
P6mm, indoor led displayItem Code / Model Number:
indoor led display
P6mm
List Item Description
1 Pixel Pitch 6mm
2 Module Size 192*96mm
3 Pixel Density 27777/㎡
4 Pixel composition 1R1G1B
5 LED Type SMD0805
6 Module Resolution 32*32
7 Power Consumption of Module 22W
8 The Optimum Viewing Distance 6m
9 The Optimum Viewing Angle 160°/120°
10 Maximum Power Consumption 1400W/㎡
11 Cabinet Size 768*576mm
12 Cabinet Resolution 128*96
12 Cabinet Weight 30Kg
14 Driving IC MBI5026GF
15 Driving Method 1/8 Scan Constant Current Driving
16 Frame Frequency ≥60Hz/s
17 Refresh Rate ≥360Hz/s
18 White Balance
Luminance(CD/㎡) ≥1500cd/㎡
19 Operating Environment Temperature -20℃—60℃ Optional
20 Operating Voltage 220V±10% or 110V±10%
21
Grey Scale Display Colors≥16.7M(Synchronized)
22 Brightness Adjustment
256 grades of each color(R.G.B)can be adjusted manually and 8 levels of each color can be adjusted automatically
23
Input Signal RF、S-Video RF, S-Vido, RGB, RGBHV, YUV etc.
24 Control System PCTV non-liner editting card+DVI display card+main control card+optic fiber transmission(Optional) or video dealer
25 Average No Failure Time >5000 hours
26 Life-span >100000 hours
27 Out-of Control rate <0.0001
28
Transmiting Distance Internet cable:< 100m, the distance will add 100m if add one signal collector. Optic fiber: ≤20Km(single module),≤500m(modules)
1 Pixel Pitch 6mm
2 Module Size 192*96mm
3 Pixel Density 27777/㎡
4 Pixel composition 1R1G1B
5 LED Type SMD0805
6 Module Resolution 32*32
7 Power Consumption of Module 22W
8 The Optimum Viewing Distance 6m
9 The Optimum Viewing Angle 160°/120°
10 Maximum Power Consumption 1400W/㎡
11 Cabinet Size 768*576mm
12 Cabinet Resolution 128*96
12 Cabinet Weight 30Kg
14 Driving IC MBI5026GF
15 Driving Method 1/8 Scan Constant Current Driving
16 Frame Frequency ≥60Hz/s
17 Refresh Rate ≥360Hz/s
18 White Balance
Luminance(CD/㎡) ≥1500cd/㎡
19 Operating Environment Temperature -20℃—60℃ Optional
20 Operating Voltage 220V±10% or 110V±10%
21
Grey Scale Display Colors≥16.7M(Synchronized)
22 Brightness Adjustment
256 grades of each color(R.G.B)can be adjusted manually and 8 levels of each color can be adjusted automatically
23
Input Signal RF、S-Video RF, S-Vido, RGB, RGBHV, YUV etc.
24 Control System PCTV non-liner editting card+DVI display card+main control card+optic fiber transmission(Optional) or video dealer
25 Average No Failure Time >5000 hours
26 Life-span >100000 hours
27 Out-of Control rate <0.0001
28
Transmiting Distance Internet cable:< 100m, the distance will add 100m if add one signal collector. Optic fiber: ≤20Km(single module),≤500m(modules)
- Place of Origin:
- Shenzhen, China
- Brand:
- Lucky
- Payment Terms:
- T/T
- Delivery Time:
- 20-25 days
- Min Order Quantity:
- 1sqm.
- Standard / Certificates:
- CE.ROHS,ISO9001:2000
- Keywords:
- led display, led sign, moving led display
