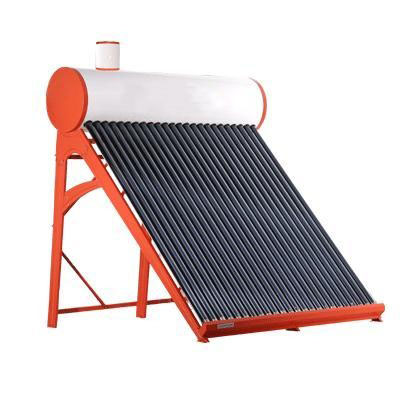

Solar Water Heater With Assistant Water Tank

Working pricinples:
Non-pressure solar water heater relies on the natural circulation of water between the collector and the tank. The whole system works at 0.2MPA.
When the water in the vacuum tubes heated， hot water rises naturally into the tank, and the cool water in the tank flows down to the bottom of the vacuum tubes.As this circulation works throughout the whole system constantly ,so we get the hot water,

The assistant tank is used to supply the cold water automatically.When the water tank reduces to a certain level, the assitant tank will supply the cold water automatically untill the water tank is full. The angel of bracket is decided according to your latitude.Its performance is stable ,reliable and easy installation.It adopts scientific structure to reach the best performance.The system can be perfectly integrated with architecture.The system can endure the maximum pressure up to 0.2 Mpa.


Specification:
1.Inner tank: SUS304-2B food grade stainless steel 0.3mm--0.6mm;
2.Outer tank: a grade color steel 0.3mm--0.6mm;
3.Heat insulation layer: 55-60mm imported PU;
4.Frame:Galvanized sheet with powder;
5.Vacuum tube:Hard borosilicate 3.3;dimension:58*1800,47*1500 and so on;coating:ALN/ALN-SS/CU
6.End cover:peacock blue,pink;or according to your order
