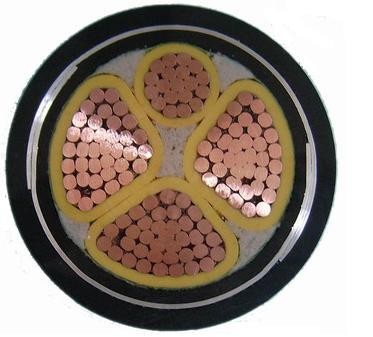

Sell Xlpe/pvc Insulated Pvc/pe Sheathed Electric Cable With Rated Voltage Up To And Including 0.6/1kv
Sell Xlpe/pvc Insulated Pvc/pe Sheathed Electric Cable With Rated Voltage Up To And Including 0.6/1kvContinuous Selling Item
Sell Xlpe/pvc Insulated Pvc/pe Sheathed Electric Cable With Rated Voltage Up To And Including 0.6/1kv
Conductor: Copper/Aluminum
Core No: 1~5 core, 3+2 Cores, 4+1 Cores
Insulation: XLPE/PVC
Armor: Optional (Steel Tape armoring, Steel wire armoring)
Screen: optional (copper tape, copper wire braid
Sheath: PVC/PE
Min. Allowable Bending Radius( XLPE/PVC Insulation):
Non-armored 20D for 1-core, armored 15D
Non-armored 15D for 1-core, armored 12D
(Where D: actual outer diameter of cable)
Ambient temp. for laying: -0℃ above
Working Temp. (XLPE) : 90℃
Working Temp. (PVC) : 70℃
Highest Temp. in Short Circuit(≤5 second)(XLPE):250℃
Highest Temp. in Short Circuit(≤5 second)(PVC):160℃
Core No: 1~5 core, 3+2 Cores, 4+1 Cores
Insulation: XLPE/PVC
Armor: Optional (Steel Tape armoring, Steel wire armoring)
Screen: optional (copper tape, copper wire braid
Sheath: PVC/PE
Min. Allowable Bending Radius( XLPE/PVC Insulation):
Non-armored 20D for 1-core, armored 15D
Non-armored 15D for 1-core, armored 12D
(Where D: actual outer diameter of cable)
Ambient temp. for laying: -0℃ above
Working Temp. (XLPE) : 90℃
Working Temp. (PVC) : 70℃
Highest Temp. in Short Circuit(≤5 second)(XLPE):250℃
Highest Temp. in Short Circuit(≤5 second)(PVC):160℃
- Place of Origin:
- Yichang, Hebei, China
- Brand:
- Tafeng
- Packing:
- Wooden drum, Wooden & Steel drum
- Payment Terms:
- L/C;Cash
