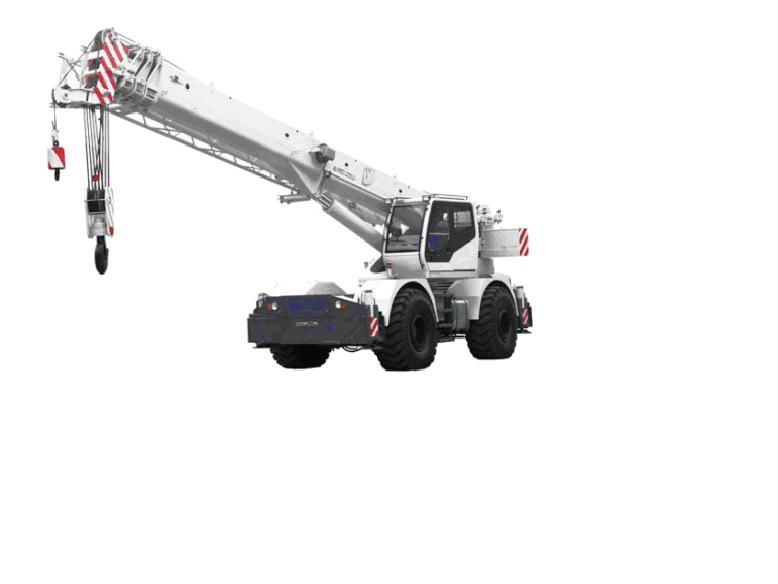

Rough Terrain Crane
Rough Terrain CraneItem Code / Model Number:
Rough Terrain Crane
Max lifting capacity: 55 T
Max lifting moment of basic boom :1678 Knm
Max lifting moment of the longest boom: 1090 KNm Boom distorsion was not taken into considerition
Max lifting height of basic boom:12.1 m
Max lifting height of main boom: 34.8m
Max lifting height of jib:52.4m
Max line speed(main winch):150 m/min the fourth layer
Max line speed(auxiliary winch):150 m/min
Time of boom raising: 56s
Time of boom extending: 100s
Slewing speed: 2.50 r/min
Max traveling speed: 38/25 km/h
Max gradeability: 55%
Min turning radius: 7.5(four wheel) 12.7(two wheel)
Min ground clearance:440 mm
Exhaust emission standard: Euro III/Tire 3
Gross vehicle weight: 41450 kg
Front axle load: 21300 kg
Rear axle load: 20150 kg
Overall dimensions(L*W*H) : 13100*3280*3750 mm
Outrigger span longitudinal: 6.9m
Outrigger span tranversal: 6.9m
Length of boom: 10.8~34.0
Boom elevation; -2~78
Jib length: 10~17
Jib offset:0, 15.30
Engine: Cummins QSB6.7-215
Angle of Aproaching/departure:25/22
Max lifting moment of basic boom :1678 Knm
Max lifting moment of the longest boom: 1090 KNm Boom distorsion was not taken into considerition
Max lifting height of basic boom:12.1 m
Max lifting height of main boom: 34.8m
Max lifting height of jib:52.4m
Max line speed(main winch):150 m/min the fourth layer
Max line speed(auxiliary winch):150 m/min
Time of boom raising: 56s
Time of boom extending: 100s
Slewing speed: 2.50 r/min
Max traveling speed: 38/25 km/h
Max gradeability: 55%
Min turning radius: 7.5(four wheel) 12.7(two wheel)
Min ground clearance:440 mm
Exhaust emission standard: Euro III/Tire 3
Gross vehicle weight: 41450 kg
Front axle load: 21300 kg
Rear axle load: 20150 kg
Overall dimensions(L*W*H) : 13100*3280*3750 mm
Outrigger span longitudinal: 6.9m
Outrigger span tranversal: 6.9m
Length of boom: 10.8~34.0
Boom elevation; -2~78
Jib length: 10~17
Jib offset:0, 15.30
Engine: Cummins QSB6.7-215
Angle of Aproaching/departure:25/22
- Place of Origin:
- China
- Brand:
- Farward
- Payment Terms:
- T/T
- Min Order Quantity:
- 1 unit
