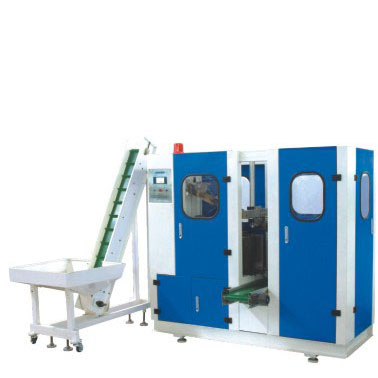

Cm-a1 Full Automatic Bottle Blow Molding Machine

CM-A1 full automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles in all shapes.It is widely used to produce the carbonated bottle,mineral water bottle,pesticide bottle,oil bottle cosmetics,wide-mouth bottle and hot fill bottle ect.
Reasonable design,full automatic control,save power and labor.Adopt high quality conponents.
Feeding system carries the preform by robot automatically.
Infrared oven heater adopts the quartz lamp to heat the PET tube.
Fully automatic process with low investment,high efficiency,quick and safe opration,easy for trouble-shooting,maintenance and other benefits.
We have the perfect service after sales.

Mian parameter:
Model CM-A1
Output(depend on bottle design) 800-1200 pcs/h
productivity PET
Volume 0.1-5L
Body diameter <=100mm
Neck diameter 18-38mm
Power 20kw
Electrical source power 380V/220V 3Phase 50/60HZ
Really use power 4kw
cooling 3HP Water Chiller(used to cool the machine and blow mould
Note:All of the electrical components adopts CE,UL,CCC aproved international advanced high-tech product.
