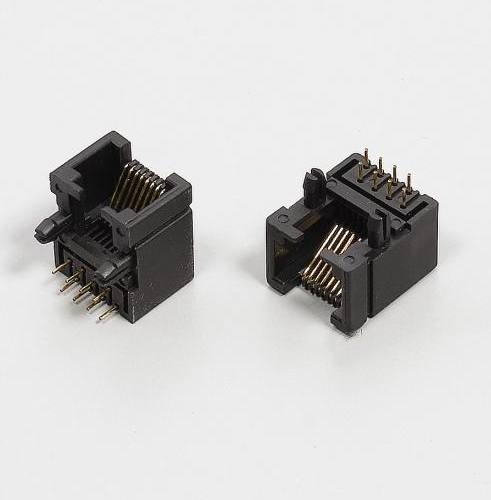

Rj45 Pcb Network Connector Side Entry
Rj45 Pcb Network Connector Side EntryItem Code / Model Number:
Rj45 Pcb Network Connector Side Entry
Type RJ45
Application PCB
Gender Female
PIN 8P
Flangled NO
Shield NO
Entry Side
Gold-plated 3U-50U(by demand)
ROW&PORT 1*1
Electrical
1.Current Rating:1.5 amps
2.Voltage Rating:125vac
3.Insulation Resistance:500 M min
4.Contact Resistance:30 M max
5.Withstanding Voltage:AC 1000V RMS 50Hz or 60Hz 1 min
Mechanical
1.Insertion Force:2.2KG.F max
2.Retention Strength:7.7KG.F min between jack and plug
3.Durability:600 mating cycles min
Material
1.Housing:ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0)
2.Contact Wire:Diameter 0.45mm phosphor bronze gold plating over nickel
0.35mm thickness phosphor bronze alloy selective gold plating over nickel
3.Shield:0.20~0.25mm thickness brass with tin plated
4.Gold Plating:3u inch,6u inch,15u inch,30u inch,50u inch
Environmental
Working Temperature:-40°C to 70°C
RJ45 PCB CONNECTOR
Application PCB
Gender Female
PIN 8P
Flangled NO
Shield NO
Entry Side
Gold-plated 3U-50U(by demand)
ROW&PORT 1*1
Electrical
1.Current Rating:1.5 amps
2.Voltage Rating:125vac
3.Insulation Resistance:500 M min
4.Contact Resistance:30 M max
5.Withstanding Voltage:AC 1000V RMS 50Hz or 60Hz 1 min
Mechanical
1.Insertion Force:2.2KG.F max
2.Retention Strength:7.7KG.F min between jack and plug
3.Durability:600 mating cycles min
Material
1.Housing:ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0)
2.Contact Wire:Diameter 0.45mm phosphor bronze gold plating over nickel
0.35mm thickness phosphor bronze alloy selective gold plating over nickel
3.Shield:0.20~0.25mm thickness brass with tin plated
4.Gold Plating:3u inch,6u inch,15u inch,30u inch,50u inch
Environmental
Working Temperature:-40°C to 70°C
RJ45 PCB CONNECTOR
- Place of Origin:
- China
- Brand:
- Oem
- Unit Price:
- USD 0.17
- Price Terms:
- FOB Shenzhen
- Packing:
- inner packing:tray/ outer packing:carton
- Payment Terms:
- L/C;D/A;T/T;M/T
- Payment Remarks:
- support paypal, alipay
- Delivery Time:
- within 20 days
- Min Order Quantity:
- 5000pcs
- Standard / Certificates:
- UL, Rosh
- Keywords:
- rj45 connector, rj45 jack, pcb jack
