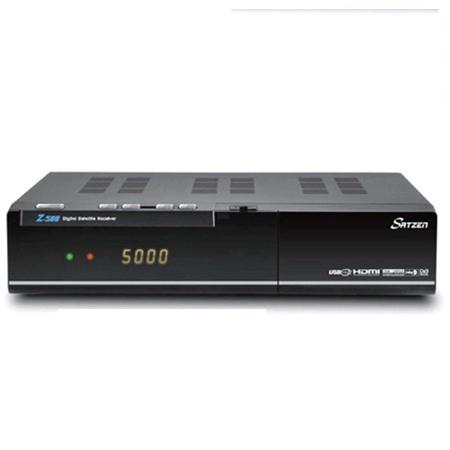

Zoomsat Satzen Z500 Fta Satellite Receiver

Technical Specifications 1. Tuner & Channel Type: 1 × F Type, IEC169-24, Female Frequency Range: 950MHz to 2150MHz RF Impedance: 75 Ohm unbanlanced Signal Level: -65 to -25 dBm LNB Power: 13.5/18.5Vdc +/- 5%, 0.5Amax, Overload protected 22KHz Tone Frequency : 22KHz +/- 2KHz, 0.6Vpp +/- 0.2V DiSEqC Control: Version1.0, 1.2, Tone burst A/B Demodulation: QPSK Input Symbol Rate: 2~45 Ms/s, SCPC/MCPC FEC Decoder: Convolution Code Rate 1/2, 2/3, 3/4, 5/6 and 7/8 With Constraint Length K = 7 2. System & Memory Main Processor: 32-bit ARM946 RISC Processor Flash Memory: 2 Mbytes System Memory: 32 Mbytes Channel Capacity Digital Channel: 5,000 Front: 7-segment Display (4 digit) 3. MPEG Transport Stream & A/V Decoding Transport Stream: MPEG-2 ISO/IEC 13818 Transport Stream Specification Profile Level: MPEG-2 MP@ML Input Rate: Max. 90Mbit/s Aspect Ratio: 4:3, 16:9, Letter Box Frame Rate: 25Hz for PAL, 30Hz for NTSC Video Resolution: 720x576(PAL), 720x480(NTSC) Teletext: Through VBI Audio Decoding: MPEG/MusiCam Layer I & II Audio Mode: Single Channel/Dual Channel Joint Stereo/Stereo Frequency Response: 20~20kHz, +/-2dB 60Hz ~ 18kHz +/- 0.5dB Sampling Rate: 32, 44.1, 48KHz 4. A/V & Date In/Out RCA Output: CVBS, L, R Output(Yellow, White, Red Jack) with Volume Control Component Video(YUV) Out HDMI Output t 720p, 1080i Data Interface: - RS-232, Bit Rate: 115,200baud t Connector: 9-pin D-sub Male type - USB : Type A Connector - Ethernet : 10/100Mbps, DHCP Supporting 5. Power Supply Input Voltage: AC 90V ~ 250V, 50Hz ~ 60Hz Power Consumption: Max 30W Standby Power Consumption: = 10W Protection: Separate Internal Fuse. The input shall the lighting protection 6. Physical Specification Size(WxHxD): 260mm x 50mm x205mm Weight: 1.4 KG 7. Environmental Condition Operating Temperature: 0 °C 40 °C Storage Temperature: -10 °C 50 °C Operating Humidity Range: 10~85% RH, Non-condensing Storage Humidity Range: 5~90% RH, Non-condensing
