Sell Multiplexer 4e1/100m Pdh
Sell Multiplexer 4e1/100m PdhContinuous Selling Item
Sell Multiplexer 4e1/100m Pdh
Overview:

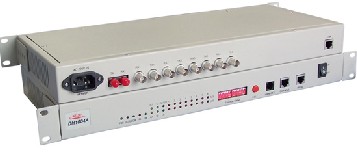

DH1004A (multiplexer, PDH, optical equipment) Ethernet transmission device provides 4×E1 interfaces and one 100M Ethernet data interface with 100% wire rate.
· Provide 4E1 interfaces and 1 RS232 interface;
· Support 1 to 4-channel 100M Ethernet interface and allow simultaneous connection to
Transmission distance: 40Km in normal conditions (up to 120Km);
E1 Interface:
Nominal rate: 2048Kbit/s, tolerance±50ppm;
Interface impedance: 75Ω (non-balanced) or 120Ω (balanced);
2048Kbit/s digital interface electrical characteristics: in compliance with ITU-T
Allowable deviation of input Jitter: in compliance with ITU-T Recommendation G.823;
Output Jitter: in compliance with ITU-T Recommendation G.823;
Number of interfaces: 4
Interface type: BNC;
100M Ethernet interface:
Interface rate: 100% wire rate, 100Mbit/s;
Interface protocol: In compliance with IEEE-802.3u standard;
Interface type: RJ-45;
Port mode: 10/100M self-adaptive
Power Supply Conditions
Voltage : AC 180V ~ AC 240V
DC -36V ~ -72V
DH1004A (multiplexer, PDH, optical equipment) Ethernet transmission device provides 4×E1 interfaces and one 100M Ethernet data interface with 100% wire rate.
· Provide 4E1 interfaces and 1 RS232 interface;
· Support 1 to 4-channel 100M Ethernet interface and allow simultaneous connection to
Transmission distance: 40Km in normal conditions (up to 120Km);
E1 Interface:
Nominal rate: 2048Kbit/s, tolerance±50ppm;
Interface impedance: 75Ω (non-balanced) or 120Ω (balanced);
2048Kbit/s digital interface electrical characteristics: in compliance with ITU-T
Allowable deviation of input Jitter: in compliance with ITU-T Recommendation G.823;
Output Jitter: in compliance with ITU-T Recommendation G.823;
Number of interfaces: 4
Interface type: BNC;
100M Ethernet interface:
Interface rate: 100% wire rate, 100Mbit/s;
Interface protocol: In compliance with IEEE-802.3u standard;
Interface type: RJ-45;
Port mode: 10/100M self-adaptive
Power Supply Conditions
Voltage : AC 180V ~ AC 240V
DC -36V ~ -72V
- Place of Origin:
- Beijing, China
- Brand:
- Huanhong
- Unit Price:
- USD 125
- Port:
- FOB Beijing
- Packing:
- 483Ã170Ã45mm
- Payment Terms:
- ;T/T;Cash
- Delivery Time:
- 7
- Min Order Quantity:
- 1set
