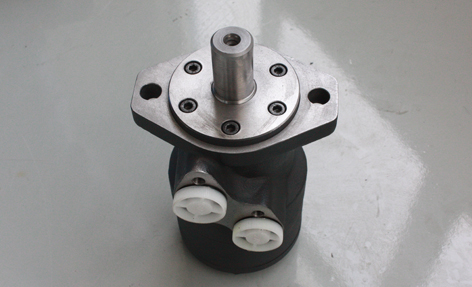

Sell Bm1 Hydraulic Orbital Motor

BM1 Series

BM1 motor is a small volume, spool valve type gerolor motor.
Characteristic features:
Advanced design of spool and gerotor, which has Small size and compact structure.
Credible design of shaft seal, which can bear high pressure and be used in parallel or in series.
Direction of shaft rotation and speed can be controlled easily and smoothly.
Best combination of efficiency and economy in medium duty applications.
A variety of connection types of flange, output shaft and oil port.

Main Specification
Displacement (ml/r) 50 63 80 100 125 160 200 250 315 400
Flow (LPM) Cont. 38 45 58 58 58 58 58 58 58 58
Int.. 45 53 69 69 69 69 69 69 69 69
Speed (RPM) Cont. 698 663 685 560 456 356 285 236 179 145
Int.. 858 775 820 671 548 426 341 282 210 173
Pressure (MPa)
Cont. 12.5 12.5 12.5 12.5 12.5 12.5 11 10 9 9
Int.. 14 14 14 14 14 12.5 12.5 12.5 12.5 11
Torque (N*m)
Cont. 74 87 124 155 194 227 282 302 365 456
Int.. 86 98 141 176 221 260 318 383 406 521

Note: 1. Intermittent means the entrance of the maximum pressure; continuous working pressure means the differential pressure
2. Motor should not work under the highest pressure and the maximum speed
3. The running time should not exceed 10% under intermittent working conditions
4. The Maximum working temperature is 80
5. The maximum allowable back pressure is 10MPa, but the recommended back pressure should not exceed 5MPa.a leaking pipes is needed when exceeding
6. one hour running time under 40% of maximum working pressure is recommended before full capacity working.
7. Recommending N68 anti-wear hydraulic oil, viscosity 37-73cSt, cleanliness ISO18/13.
