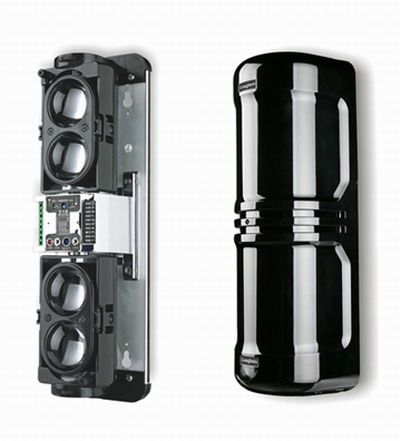

4 Beams Digital Active Photoelectric Detector

Detailed Features

Quadruple Beams simultaneously block inspection

Digital Frequency Conversion

Active Infrared Beams

Infrared LED Lighting

Digital wave filtering lighting

Window sighting telescope

PC engineering plastic material

Dew and frost proof solution; heating housing



Technical specifications:

Response speed: 50 to 700m/sec adjustable

Alarm output: 1C relay contact output, contact capability DC30V/0.5A max

Power and voltage: DC12~24V, AC 11~18V

Working temperature: -25 Celsius degree - 55 Celsius degree

Tamper output: 1B contact output, DC30V/0.5A max

Optical axis adjust angle(horizontal):180°(±90°)

Optical axis adjust angle(vertical): 20°(±10°)

Weight: 1050g for transmitter; 1050g for receiver; 2500g for each pack (including bracket)

Valid length:35CM

Model
ABH-50
ABH-100
ABH-150
ABH-200
ABH-250

Detecting distance(outdoor)
50m
100m
150m
200m
250m

Detecting distance(indoor)
150m
300m
450m
600m
750m

Max Operating current
95mA
100mA
100mA
105mA
105mA
