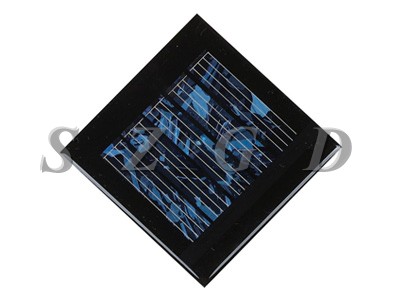

mini solar panel
mini solar panel, SZGD6161-5PItem Code / Model Number:
SZGD6161-5P
mini solar panel
Model No.:SZGD6161-5P
Pmax:0.25W
Dimension:61mmx61mmx2.5mm
Sealed with epoxy resin
Solar cell: Poly-crystalline solar cell
5pcs of solar cell bar in series.
Efficiency:＞15.0%
Vmp:2.40V Imp:100mA
Voc:2.75V Isc:110mA
Test condition: 1kW/sqm, AM1.5, 25°C
Warranty: nominal power keep more than 90% in 1 year
Pmax:0.25W
Dimension:61mmx61mmx2.5mm
Sealed with epoxy resin
Solar cell: Poly-crystalline solar cell
5pcs of solar cell bar in series.
Efficiency:＞15.0%
Vmp:2.40V Imp:100mA
Voc:2.75V Isc:110mA
Test condition: 1kW/sqm, AM1.5, 25°C
Warranty: nominal power keep more than 90% in 1 year
- Place of Origin:
- China
- Brand:
- SZGD
- Price Terms:
- FOB Ningbo
- Packing:
- Nominal packing
- Payment Terms:
- L/C;T/T
- Payment Remarks:
- PayPal, Western Union
- Delivery Time:
- 15 days
- Min Order Quantity:
- 500 pcs
- Standard / Certificates:
- CE, ROHS, EN71
- Keywords:
- solar panel, solar module, solar energy
