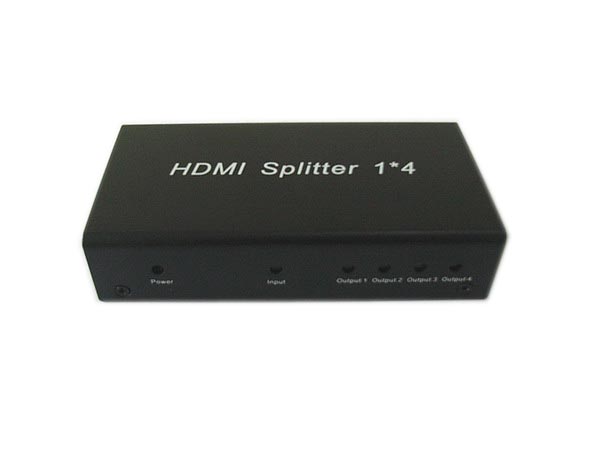

4 Ports Hdmi Splitter

3D Mini 1x4 HDMI Splitter Distribution Amplifier Full HD 1080p v1.3
Model: GIEL-H04
Introduction
The 1x4 HDMI Distribution Amplifier Splitter distributes the HDMI input into four identical outputs. The synchronized outputs also have the ability of buffering and amplifying. Each unit's output can achieve long distance transmission of HDMI signal up to 15 meters. When two or more 1x4 splitters are cascaded, they can be used to create a larger distribution and longer length.These HDMI Video Splitter units are HDCP compliant.HDMI Splitter is an ideal product for home theater and digital signage applications.
Features:
Support CEC/3D
Easy to Use: Install in seconds, simple plug and play
Support digital audio split in HDMI, such as LPCM/Dolby-AC3/DTS7.1/DSD.
Support deep color 36bit and signal retiming.
LED Indicate:
When source device and the sink display devices work in HDCP status, the color of LED relative to the sink will be blue. When source is Non-HDCP, the color of LED relative to the sink will be red.

Specifications

Input Video Signal 0.5-1.0 volts p-p

Input DDC Signal 5 volts p-p (TTL)
Maximum Single Link Range 1920X1200, 1080P
Output Video HDMI 1.3+ HDCP1.0/1.1
VGA 640x480,800x600,1024x768,1920x1200
DTV/HDTV 480i/576i/480p/576p/720p/1080i/1080P
HDMI Compliance HDMI 1.3
Frequency Up to165MHz
Interlaced(50&60Hz) 480i,576i,1080i
Progressive(50&60Hz) 480p,576p,720p,1080p
Audio Format DTS-HD/Dolby-trueHD ,LPCM,Dolby-AC3,DTS7.1/DSD
Size(L-W-H) 114.5mmx 62.5mm x 26mm
Weight(Net) 219G
Limited Warranty 1 Year
Operating Temperature 0 to +70 °C
Operating Humidity 10% to 85 % RH (no condensation)
Storage Temperature -10 to +80 °C
Storage Humidity 5% to 90 % RH (no condensation)

Accessories

Item Quantity Remark
HDMI Splitter 1 --
DC Power Adapter 1 --
User Manual 1 EN
