Portable Ultrasonic Flaw Detector Mfd350b

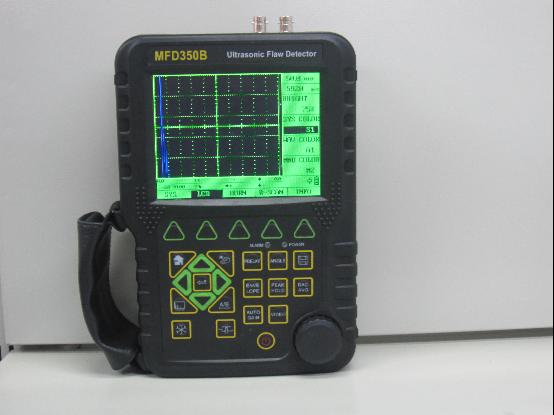

Portable Ultrasonic Flaw Detector MFD350B

RANGE:
0- 6000mm (at steel velocity); range selectable in fixed steps or continuously variable.

ALARM:
Alarm with sound and light,.

MERMORY:
Total 100 configuration channels store all instrument operating parameters plus DAC/AVG curve; stored configuration data can be easily previewed and recalled for quick, repeatable instrument setup. Total 1000 datasets store all instrument operating parameters plus A-scan. All the configuration channels and datasets can be transferred to PC via USB port. FUNCTIONS:Peak Hold:
Automatically searching the peak wave inside the gate and hold it on the display.
Equivalent diameter calculation: find out the peak echo and calculate its equivalent diameter.
Continuous Record: Record the display continuously and save it to the memory inside the instrument.
Defect Localization: Localize the defect position, including the distance, the depth and its plane projection distance.
Defect Sizing: calculate the defect size
Defect Evaluation: Evaluate the defect by echo envelope.
DAC: Distance Amplitude Correction
AVG: Distance Gain Size curve function
Crack measure: Measure and calculate the crack depth
B-SCAN: Display the cross-section of the test block.REAL-TIME CLOCK:Real time clock for tracking the time. COMMUNICATION:USB2.0 high-speed communication port

SPECIFICATIONS:
1.Range: (0 - 6000) mm
2.Bandwidth: (0.5 - 10) MHz
3.Material Velocity: (1000 - 9999) m / s
4.Dynamic Range: ≥ 32dB
5.Vertical linear error: ≤ 3%
6.Horizontal linear error: ≤ 0.2%
7.Resolution:> 40dB (5P14)
8.Sensitivity Leavings: 60dB (flat-bottomed deep hole 200mmφ2)
9.Rejection: (0 to 80)% Linear
10.Noise level: ≤ 10%
11.Power supply: DC 9V; lithium batteries work for 4 to 8 hours or more 12.Ambient temperature: (-20 - 50) degree Celsius
13.Relative Humidity: (20 - 95)% RH
14.Overall dimensions: 263 * 170 * 61 (mm)
