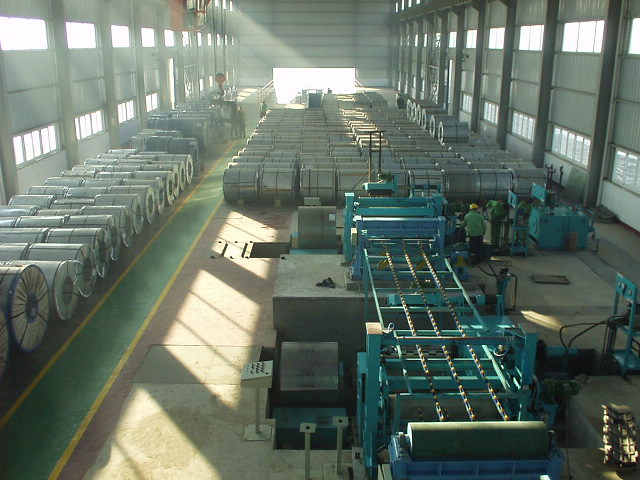

Sell Hot-Dip Galvanizing production

Our hot-dip lines offer a choice of horizontal or vertical non-oxidizing type furnaces. The furnaces can be sized purely to provide a clean surface for optimum adhesion of the zinc coating. Or, they can be designed to also anneal strip of various grades from full-hard to deep drawing quality.
Available size range:

Capacity: 100000-200000 ton / year
Speed: 80-150m/min
Materials： Cold rolled steel coil
Coil Weight : 20000 kg
Coil Outer Diameter: φ800-2100mm
Coil Inner Diameter: φ508mm、φ610mm
Thickness : 0.2-1.2mm
Width : 600-1250mm
Energy Sources: Nature gas,LPG,Steam and electricity
Average Galvanizing Thickness: 100-300g/m2
Coating specification: Regular Spangle
Minimized Spangle
Spangle-free
Posttreatment： spraying chromate/roll-coating
anti-fingerprint and lubricant
spraying anti-rust oil/electrostatically spraying anti-rust oil
Quality standanrd: GB2518-88
