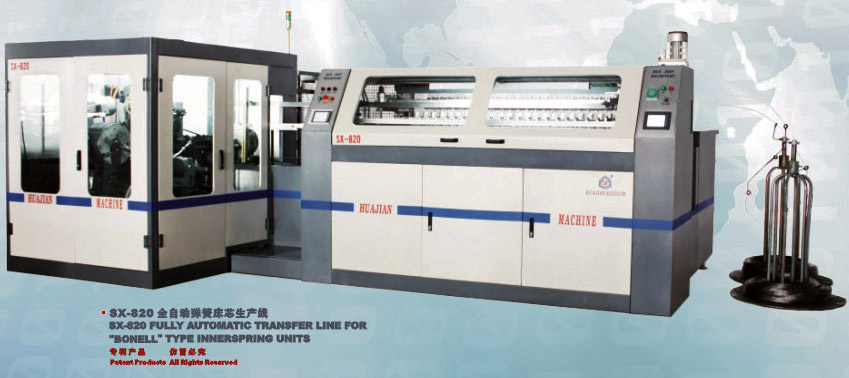

Sx-820 Fully Automatic Transfer Line For Bonell Type Innerspring Units

SX-820 FULLY AUTOMATIC TRANSFER LINE FOR “BONELL” TYPE INNERSPRING UNITS is latest model for producing “Bonell” type innerspring units. It can produce innerspring units directly from wire. Firstly the steel wire is coiled to a spring, and then transferred and inserted to the assembler by the automatic feeding system. After this, the upper and lower springs are coiled together at the same time and helical wire coiled,cut and clamped at both ends automatically. When a unit is finished, it could be ejected automatically.

Technical Data

Spring Type
Bonell

Capacity
80 Sheets /8 Hours

(1800MM*2000MM)

Max Width
2M

Spring End Ring
Ф65-Ф90MM

Steel Wire Gauge
Ф1.9-Ф2.4MM

Spring Height
100-180MM

Convolutions
4-7 Turns

Total Power
10KVA

Weight
5355KG

Power Requirement
380V,3 Phase,50-60HZ

(Option: 415V-480V, 220V)
