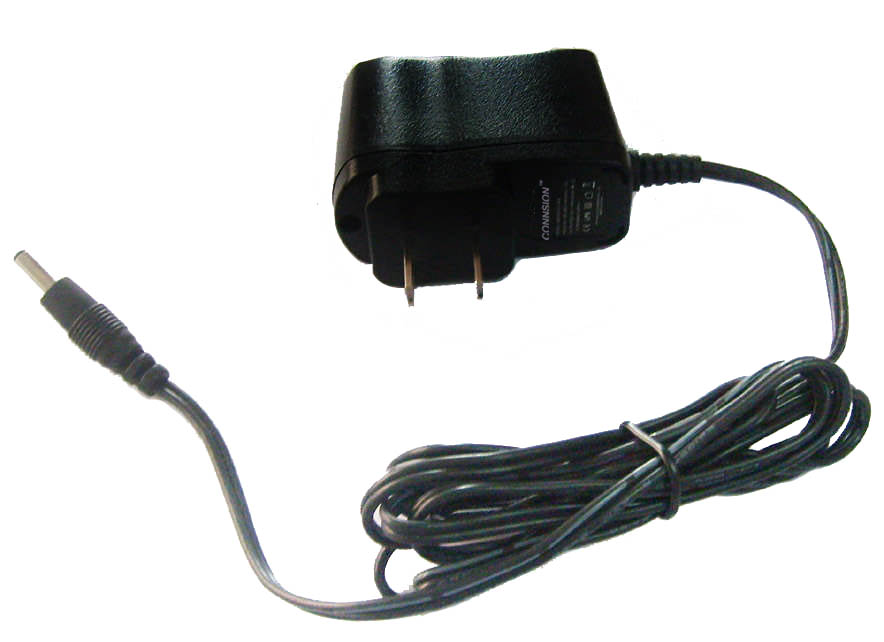

5w Ac Adapters Series

Specifications:
Input voltage 90~264vac
Input frequency 47~63Hz
Input current 0.2A Max.
leakage current 0.25mA max.@240VAC/50Hz
Output voltage See datasheet
Output current See datasheet
Output power range See datasheet
Ripple&noise See datasheet
Efficiency See datasheet
Line regulation ±1%
Load regulation ±5%
Hold-up time 10ms minimum
Inrush current 30A MAX@ 230VAC at 25℃ cold start
High-Voltage Primary to secondary 3 KV 10 mA 60 S
Over voltage protection When over voltage occurred, The power adapter will be protected.
Over current protection When over current occurred, The power adapter will be protected.
Short circuit protection When short circuit occurred, The power adapter will be protected.
The adapter will operate normally after the short circuit condition is removed.
Other protection Limit Power Source
Operating temperature 0℃~ +40℃
Storage temperature -20℃~ +85℃
Relative humidity 90% to 95%.
Derating Derated from 100% at + 40℃ linearly to 60% at 50℃.
Burn-In Test The power adapter shall be operating four hours under rated conditions .
Drop Test The power adapter shall be dropped from a height of 1 meter onto the board.
MTBF Test The power adapter should have 60,000 hours according to MTBF.
Vibration Test Frequency from 5Hz to 200Hz, Direction: vibration X, Y and Z axis, at least 30 min/axis.
ROHS and WEEE Meet the standards of European.
REACH Meet the standards of European.
Packing The Packing shall prevent from damage during transit, loading and storage.
EMI requirements Meet CE standards
Safety requirements Meet CE standards
Warranty One year

C=wall mount type adapter.
YY=VDE=European type plug. YY=UL= American type plug. YY=UK= British type plug. YY=EK= Korean type plug.
YY=SAA= Australian type plug. YY=CCC= Chinese type plug. YY=PSE= Japanese type plug. YY=OTH= Other type plug.
Model Number Output Voltage(VDC) Output Current(A) Output power(MAX) Ripple&Noise
Max(mV) Line Regulation(%) Load Regulation(%) Efficiency
MIN(%)
C5W1VYY 3-4.99V 0-1.66A 5w 80 mV 1% 5% 65%
C5W2VYY 5-6.99V 0-1A 5w 80 mV 1% 5% 60%
C5W3VYY 7-8.99V 0-0.85A 6w 100 mV 1% 5% 62%
C5W4VYY 9-10.99V 0-0.66A 6w 120 mV 1% 5% 65%
C5W5VYY 11-12.99V 0-0.54A 6w 120 mV 1% 5% 65%
C5W6VYY 13-14.99V 0-0.46A 6w 150 mV 1% 5% 65%
C5W7VYY 15-16.99V 0-0.4A 6w 150 mV 1% 5% 65%
C5W8VYY 17-18.99V 0-0.35A 6w 180 mV 1% 5% 60%
C5W9VYY 19-20.99V 0-0.31A 6w 180 mV 1% 5% 60%
C5W10VYY 21-24V 0-0.28A 6w 180 mV 1% 5% 60%
