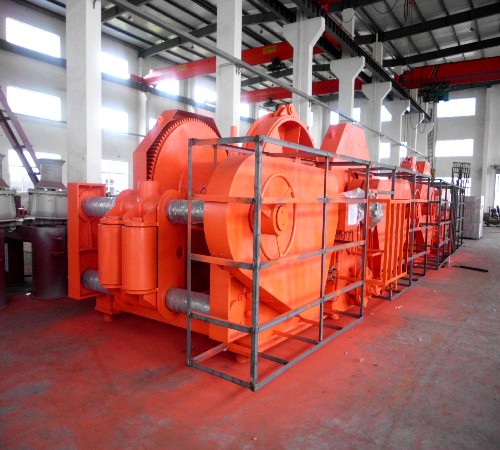

Hydraulic Mooring Winch

Specifications Details Hydraulic Mooring Winch with double drums in waterfall
It consists of a hydraulic motor,spur gears with cover, three main shafts , two drums, ratchet wheel and detent, etc.
Feature Double drums in waterfall. Two drums can work simultaneously and independently.
Each Drum's load 68T (1st layer)
Each drum's Brake Holding load 79T (1st layer,)
Nominal speed 68T X 5m/min(High speed,9.8T X20m/min
Drum capacity Dia.38mm x L1220m (11 layers) Steel wire rope
Hydraulic motor BD5 1500/400(SAI)
Manual operated proportional valve AMCA APV-22
Working pressure 24.76MPa
Winch control Local control & Remote control including amplifier and joystick
Brake Hydraulic operated band brake (normally shut)
Clutch Hydraulic claw clutch
Power Two units 68T double drums winch share one hydraulic power unit placed in a room with doors. Two winches / 4 drums can work simultaneously and independently.
