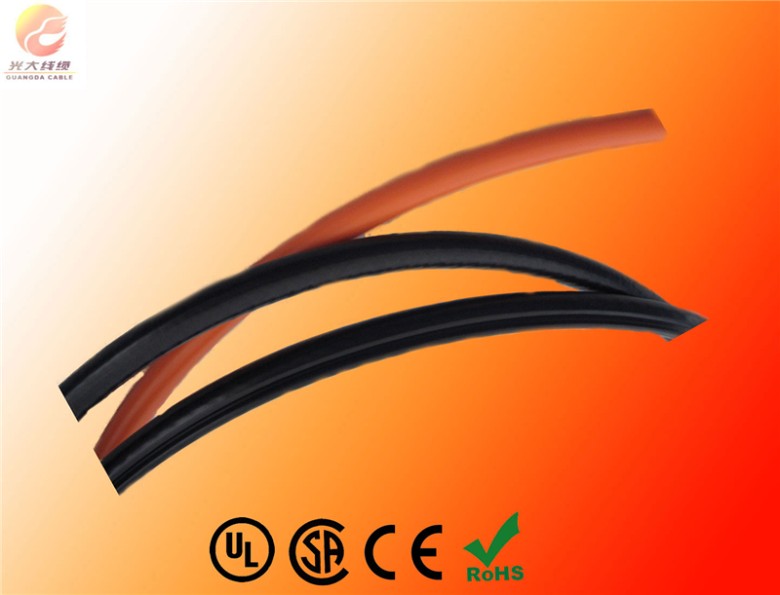

COAXIAL CABLE 75 ohm
COAXIAL CABLE 75 ohm, RG seriesItem Code / Model Number:
RG series
COAXIAL CABLE 75 ohm
RG6 cable:
1.02mm CCS/BC+4.57mmFPE +Al Foil+Al-Mg Braiding+6.85mm PVC Jacket (75 Degree)
Remark (Optional terms):
(1) Inner conductor: Bare Copper / Copper Clad Aluminum / Copper Clad Steel
(2) Dielectric: Foam PE / Solid PE
(3) Al Foil (100% coverage): Bonded / Non-bonded / Single / Double
(4) Braiding Wire: Cu / Al-Mg / TC
(5) Braiding wire diameter: 0.10mm, 0.12mm, 0.13mm, 0.14mm, 0.15mm, 0.16mm
(6) Braiding Net: 64 / 72 / 80 / 96 / 128 and more
(7) Coverage: 60% / 80% /90% and more
(8) PVC Degree: 60 / 65/ 68 / 70 / 75
(9) Messenger: Copper Clad Steel / Steel / Single / Double
All of products are approved by ISO9001:2008, UL,ETL, CSA, CE, ROHS
Applications:
(1)CCTV-closed-circuit television
(2)CATV-Community Antenna Television
(3)DBS-Direct broadcasting by satellite
1.02mm CCS/BC+4.57mmFPE +Al Foil+Al-Mg Braiding+6.85mm PVC Jacket (75 Degree)
Remark (Optional terms):
(1) Inner conductor: Bare Copper / Copper Clad Aluminum / Copper Clad Steel
(2) Dielectric: Foam PE / Solid PE
(3) Al Foil (100% coverage): Bonded / Non-bonded / Single / Double
(4) Braiding Wire: Cu / Al-Mg / TC
(5) Braiding wire diameter: 0.10mm, 0.12mm, 0.13mm, 0.14mm, 0.15mm, 0.16mm
(6) Braiding Net: 64 / 72 / 80 / 96 / 128 and more
(7) Coverage: 60% / 80% /90% and more
(8) PVC Degree: 60 / 65/ 68 / 70 / 75
(9) Messenger: Copper Clad Steel / Steel / Single / Double
All of products are approved by ISO9001:2008, UL,ETL, CSA, CE, ROHS
Applications:
(1)CCTV-closed-circuit television
(2)CATV-Community Antenna Television
(3)DBS-Direct broadcasting by satellite
- Place of Origin:
- China
- Brand:
- Guangda
- Unit Price:
- USD 10~200 / km
- Price Terms:
- FOB Shanghai/Ningbo
- Packing:
- Carton above pallet, reel-in-a-box above pallet, easy pull box above pallet
- Payment Terms:
- L/C;T/T
- Delivery Time:
- 15-20 days
- Min Order Quantity:
- 50 Klilometer/Kilometers
- Standard / Certificates:
- UL,CSA,RoHS,CE
- Keywords:
- coaxial cable rg6 rg59 rg11, coaxial cable, communications cable
