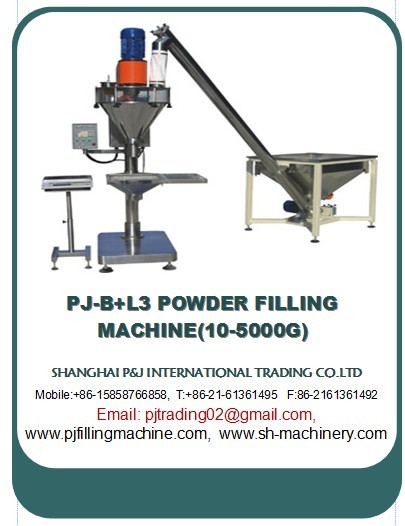

Powder Filling Machine
Powder Filling MachineItem Code / Model Number:
Powder Filling Machine
Usage:
This type can do measuring and filling work. Due to the special design, so it fits more to the fluidic or low-fluidity materials, like milk powder, Albumen powder ,solid drink, white sugar, dextrose, coffee powder, fodder, pharmaceuticals, agriculture pesticide, granular additive, dyestuff, and so on.
Specification:
Metering Mode Auger rotation filling traced by weighing feedback
Filling Weight 1 — 5000g (The screw attachment is to be changed)
Filling Accuracy
Package weight ≤ 100g,with an error<2%
100 — 100g, with an error≤±0.5-1%
1000-5000g, with an error≤±0.25-0.5%
Filling speed 10 – 50bags/min
Power Supply 3P / 220V-415V 50-60Hz
Total Power 1.4KW
Total Weight 130Kg
Overall Dimensions 800×980×2120mm
Hopper Volume 45L
Control system Mitsubishi PLC, touch screen made in taiwan
This type can do measuring and filling work. Due to the special design, so it fits more to the fluidic or low-fluidity materials, like milk powder, Albumen powder ,solid drink, white sugar, dextrose, coffee powder, fodder, pharmaceuticals, agriculture pesticide, granular additive, dyestuff, and so on.
Specification:
Metering Mode Auger rotation filling traced by weighing feedback
Filling Weight 1 — 5000g (The screw attachment is to be changed)
Filling Accuracy
Package weight ≤ 100g,with an error<2%
100 — 100g, with an error≤±0.5-1%
1000-5000g, with an error≤±0.25-0.5%
Filling speed 10 – 50bags/min
Power Supply 3P / 220V-415V 50-60Hz
Total Power 1.4KW
Total Weight 130Kg
Overall Dimensions 800×980×2120mm
Hopper Volume 45L
Control system Mitsubishi PLC, touch screen made in taiwan
- Place of Origin:
- China
- Brand:
- P&j
- Packing:
- wooden case
- Payment Terms:
- L/C;T/T
- Delivery Time:
- 40 days
- Min Order Quantity:
- 1set
- Keywords:
- powder filling machine, milk powder packing machine, powder packing machines
