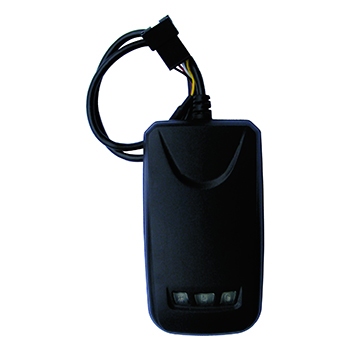

Gps Gprs Gsm Motorcycle Tracker
Gps Gprs Gsm Motorcycle Tracker , MT 03Item Code / Model Number:
MT 03
Gps Gprs Gsm Motorcycle Tracker
Main functions:
Tracking via SMS or GPRS (TCP/UDP)
Cell phone tracking with address name
Tracking by time interval
Tracking by distance
SOS panic button
Geo-fencing control
Low battery alert
Speeding alert
External power cut alert
Remote engine/fuel cut
Real time tracking and history location play back
ACC detecting
Car door/trunk detecting
Position logging capacity up to 260,000+ waypoints
Record gps data while in GSM blind area &forward when GPRS re-establish
Specifications:
Items Specifications
Power Supply +9V - +35V / 1.5A
Backup Battery 850mAh
Dimension 79mm x 57mm x 21mm
Installation Dimension 103mm x57mm x 21mm
Weight 145g
Operating temperature -20° to 55° C
Humidity 5% to 95% Non-condensing
Frequency GSM 900/1800/1900Mhz or GSM 850/900/1800/1900Mhz (optional)
GPS Chipset latest GPS SIRF-Star III chipset
GPS Sensitivity -158Db
GPS Frequency L1, 1575.42 MHz
C/A Code 1.023 MHz chip rate
Channels 20 channel all-in-view tracking
Position Accuracy 10 m, 2D RMS
Velocity Accuracy 0.1 m/s
Time Accuracy 1 us synchronized to GPS time
Default datum WGS-84
Reacquisition 0.1 sec., average
Hot start 1 sec., average
Warm start 38 sec., average
Cold start 42 sec., average
Altitude Limit 18,000 m (60,000 feet) max.
Velocity Limit 515 m/second (1000 knots) max.
LED 3 LED light to show working status.
Button One SOS button
Interface 2 input and 1 output
Tracking via SMS or GPRS (TCP/UDP)
Cell phone tracking with address name
Tracking by time interval
Tracking by distance
SOS panic button
Geo-fencing control
Low battery alert
Speeding alert
External power cut alert
Remote engine/fuel cut
Real time tracking and history location play back
ACC detecting
Car door/trunk detecting
Position logging capacity up to 260,000+ waypoints
Record gps data while in GSM blind area &forward when GPRS re-establish
Specifications:
Items Specifications
Power Supply +9V - +35V / 1.5A
Backup Battery 850mAh
Dimension 79mm x 57mm x 21mm
Installation Dimension 103mm x57mm x 21mm
Weight 145g
Operating temperature -20° to 55° C
Humidity 5% to 95% Non-condensing
Frequency GSM 900/1800/1900Mhz or GSM 850/900/1800/1900Mhz (optional)
GPS Chipset latest GPS SIRF-Star III chipset
GPS Sensitivity -158Db
GPS Frequency L1, 1575.42 MHz
C/A Code 1.023 MHz chip rate
Channels 20 channel all-in-view tracking
Position Accuracy 10 m, 2D RMS
Velocity Accuracy 0.1 m/s
Time Accuracy 1 us synchronized to GPS time
Default datum WGS-84
Reacquisition 0.1 sec., average
Hot start 1 sec., average
Warm start 38 sec., average
Cold start 42 sec., average
Altitude Limit 18,000 m (60,000 feet) max.
Velocity Limit 515 m/second (1000 knots) max.
LED 3 LED light to show working status.
Button One SOS button
Interface 2 input and 1 output
- Place of Origin:
- China
- Brand:
- Oner/odm/oem
- Unit Price:
- USD 69.89
- Price Terms:
- FOB Guangzhou, China
- Packing:
- carton
- Payment Terms:
- T/T
- Payment Remarks:
- Paypal,Western Union
- Delivery Time:
- 3 days
- Min Order Quantity:
- 1 pc
- Standard / Certificates:
- FCC,CE,ISO9001
- Keywords:
- gps gprs gsm motorcycle tracker
