Insulated Terminals

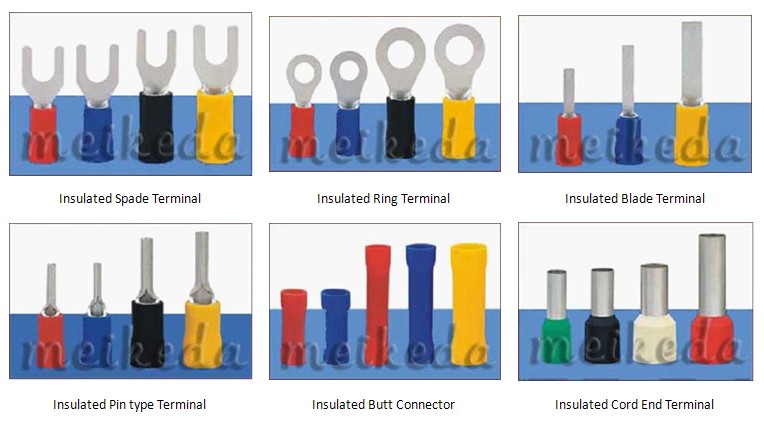

Insulated Terminals/cable Lug We are professionally produce high quality Insulated /insulated terminals with more than 7 years global marketing experience.Insulated wiring terminals include Insulated spade/ fork terminals, Insulated Ring/Circular terminals, Insulated spade/ fork terminals, Insulated blade/Chip-shaped terminals, Insulated pin terminals, Insulated tube terminals, Insulated cord end terminals.

SV Insulated Spade/terminals, RV Insulated Ring Terminals
1.CE RoHS, ISO2001 certification
2.SV1.25,SV2,SV3.5,SV5.5,SV8 ;
RV1.25,RV2,RV3,RV5.5,RV8
3.Terminal Material: Copper,Tin-plated
4.Insulating material:PVC/Nylon
5.Color:Red,Blue,Yellow,Black
6.Maximum Electric Current of RV & SV series:
A.W.G Cable Size(mm2) Max Current(A)
22-16 0.5 - 1.5 19
16-14 1.5 - 2.5 27
14-12 2.5 - 4 37
12-10 4 - 6 48
8 6-10 62

For more information about RV & SV series and our other product,please feel free to contact us.


Meikeda company is your direct source for professional grade terminal and connector's supplier. We can supply PVC insulated terminals, Nylon-insulated terminals,naked terminals, copper terminals, cable terminals, butt terminals, female& male terminals/joints, Cord end terminals, full-insulated disconnects/connectors,Crewel tube pre-insulated terminals,cable lugs, cable ties, soft sleeves, Auto terminals,and thousands of other terminals and connectors, all backed by the best management, advanced technology and high-quality service in our company.
