Zhangjiagang Apollo Machinery Co., Ltd

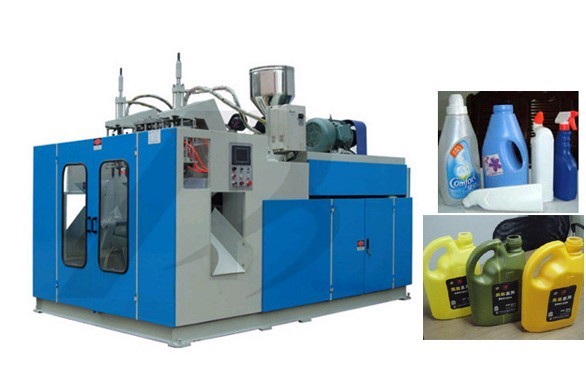

Plastic bottle blow molding machine

Plastic bottle blow molding machine, ABLB65II
Item Code / Model Number:
ABLB65II

Plastic bottle blow molding machine Plastic bottle blow molding machine
ABLB65II This type of machine is sutiable to produce different shapes of plastic bottles from 500ml to 4L.
Adopt Misubishi PLC from Japan Contactor use Schneider from France Most of spareparts of hydraulic system and pneumatic system are impored from Japan,Korea,France and Taiwan,china to ensure the quality of the machine.
 For more info.,please contact us.
Related technical parameter:: (ABLB65II)

Max. Product volume
4 liters Dry cycle 800X2pc/h
Screw diameter 65mm
Screw L/D ratio
24 L/D
Screw drive power
18.5 KW Screw heating capacity
5.7 KW
No.of heating zone
3 zones Output of HDPE 80 KG/H
Oil pump drive power
7.5 KW Clamping force
45 KN
Max.size of mold
330X360mm Mold stroke
148-508mm
Max.die diameter
140mm Blow pressure
0.6mpa
Air volume
0.7 M³/MIN Cooling water pressure
0.3mpa
Water consumption 65 L/MIN

◆ PLC adds the man-machine interface, the touching type is operated, it is convenient to be simple and direct.
◆ One pair of Iow plastification systems of Senior One, energy-efficient,mix and smelt outstandingly.
◆ The centre enters the material, the pushing out of the mould head of many patterns, remove and make and converge the line completely, meet the demands of different structure products.
◆ Two parallel, the mould organization of translation, the centre locks the mould, balance the strength of receiving,move rapidly, put it in place gentlely.
  • Place of Origin:
  • China
  • Brand:
  • Apollo
  • Unit Price:
  • USD 22000~30000
  • Price Terms:
  • FOB Shanghai
  • Other Price Terms:
  • Price negotiable
  • Packing:
  • flim package
  • Payment Terms:
  • T/T
  • Payment Remarks:
  • 30% TT prepaid
  • Delivery Time:
  • 45 days
  • Min Order Quantity:
  • 1
  • Standard / Certificates:
  • CE,ISO9001
  • Keywords:
  • blow molding machine, plastic bottle making machine, extruder blow machine

Company Profile

  • Business Type:
  • Manufacturer
  • Country:
  • China
  • Yearly Sales Volume:
  • US$10M - US$30M

Contact Information

  • Company Name:
  • Zhangjiagang Apollo Machinery Co., Ltd
  • Country:
  • China
  • Address:
  • Fenghuang Town, Zhangjiagang City, Jiangsu Province, China
  • Website:
  • http://www.ch-apollo.com
