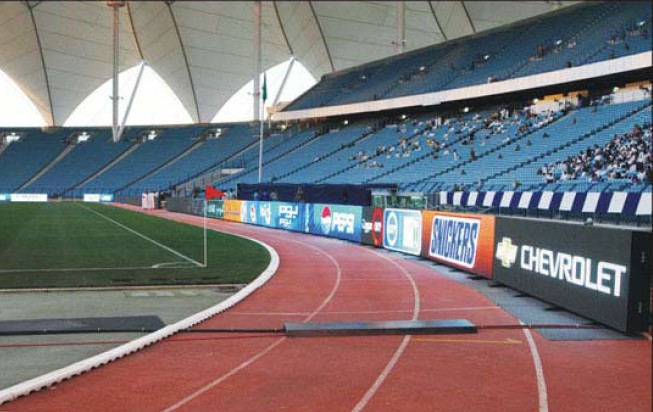

Stadium Perimeter Led Screen
Stadium Perimeter Led Screen, BK-P161024Item Code / Model Number:
BK-P161024
Stadium Perimeter Led Screen
stadium perimeter LED screen features:
1.The cabinet design makes it convenient to install and it has good adaptability and scalability;
2.Soft mask makes it hightly impact resistant;
3.The view angle is adjustable;
4.The advertising contents may be changed at any time accordint to the specific needs.
P16 outdoor full color LED display parameters:
Pixel pitch:16mm,
Size of module:256*128mm,
Density of pixel:3906/square meter,
Pixel constitution:2R1G1B,
LED encapsulation:DIP546,
Resolution of module :16*8,
Power consumption of module: less than 32W,
The best view distance:20-53m .
The best view angle(horizontal:110 degree) ,
Maximum power consumption:1000W/square meter,
Size of cabinet:1024*768mm,
Resolution of cabinet:64*48,
Weight of cabnit:60 Kg,
Driving method:static constant current driving,
Frame frequency:more than 60 HZ,
Refresh rate::more than 600HZ,
Luminance of white balance:more than 7000cd/square meter,
Working environment temperature:-20~50celsius degree,
Working voltage:220V.or 110V,
Grey scale:each color more than 16384grace,
Brightness adjustment:256 levels of each color(RGB)can be adjusted automatically
and 100 levels of each color can be adusted manualy,
Input signal:RF,S-Video etc.
Control system:PCTV non -linear editting card+DVI display card+main
controller card+optic fibre transmission(Optional),
Out-of-control rate: less than 0.0001.
1.The cabinet design makes it convenient to install and it has good adaptability and scalability;
2.Soft mask makes it hightly impact resistant;
3.The view angle is adjustable;
4.The advertising contents may be changed at any time accordint to the specific needs.
P16 outdoor full color LED display parameters:
Pixel pitch:16mm,
Size of module:256*128mm,
Density of pixel:3906/square meter,
Pixel constitution:2R1G1B,
LED encapsulation:DIP546,
Resolution of module :16*8,
Power consumption of module: less than 32W,
The best view distance:20-53m .
The best view angle(horizontal:110 degree) ,
Maximum power consumption:1000W/square meter,
Size of cabinet:1024*768mm,
Resolution of cabinet:64*48,
Weight of cabnit:60 Kg,
Driving method:static constant current driving,
Frame frequency:more than 60 HZ,
Refresh rate::more than 600HZ,
Luminance of white balance:more than 7000cd/square meter,
Working environment temperature:-20~50celsius degree,
Working voltage:220V.or 110V,
Grey scale:each color more than 16384grace,
Brightness adjustment:256 levels of each color(RGB)can be adjusted automatically
and 100 levels of each color can be adusted manualy,
Input signal:RF,S-Video etc.
Control system:PCTV non -linear editting card+DVI display card+main
controller card+optic fibre transmission(Optional),
Out-of-control rate: less than 0.0001.
- Place of Origin:
- China
- Brand:
- Bako/lucky
- Unit Price:
- USD 1300-3800
- Price Terms:
- FOB Shenzhen
- Other Price Terms:
- EXW,CIF
- Packing:
- 2 cabinets in a wooden case,it depends on
- Payment Terms:
- T/T;Cash
- Payment Remarks:
- 30% in advance,70% before shippment.
- Delivery Time:
- 10 days
- Min Order Quantity:
- 1m2
- Standard / Certificates:
- CE,RoHS,FCC,CCC,UL
- Keywords:
- led screen, led billboard, led display
