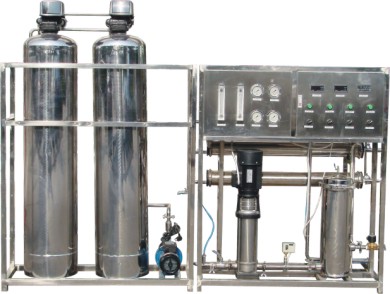

Fro-1t/h Automatic Anti-penetration Pure Water Device
Fro-1t/h Automatic Anti-penetration Pure Water DeviceItem Code / Model Number:
Fro-1t/h Automatic Anti-penetration Pure Water Device
USE:
Cosmetic,Pharmaceutical,chemical industries,food,drinking water
Feature:
1、 Imported parts over 90%
2、 High operation automatization; Machine does not need to be guarded by worker,it will stop automatically when water is full and start when there is no water inside .Automatic controller washes front transitive material timely,IC microcomputer controller washes anti-penetration film automatically,raw material and pure water electrical conductivity is shown on line.
3、 American RO low pressure film.
4、 Producing pure water electrical conductivity≤10us/cm.
5、Anti-penetration desalinating rate≥99% ,whole machine desalinatiing rate≥98%.
Parameter:
Type Water producing quantity T/H Electric power Reclaim rate% Outlet electrical conductivity US/CM Film quantity Raw water electrical conductivity US/CM
FRO-0.5 0.5 0.75 50 3-8 2 ≤300
FRO-0.75 0.75 2.2 50 3-8 3 ≤300
FRO-1 1 2.2 75 3-8 4 ≤300
FRO-2 2.0 3.0 75 3-8 8 ≤300
FRO-2.5 2.5 3.0 75 3-8 10 ≤300
Structure:
1.Source water pump
Type: BLC120/150
Power:0.75 KW
Quantity: 1set
Origin: Guangdong
2.Multi-medium filter
Type:WCB-1465
Material: Imported stainless steel
Material of filter: Quartz sand
Equipment: U-PVC manual valve
3.Activated carbon filter
Type:WCB-1465
Material:Imported stainless steel
Material of filter: Quartz sand
Equipment:U-PVC manual valve
4. Precision filter
Material: stainless steel
Size:D220×H550
Filter: PP 5Nos. (3-5ц)
Quantity:1set
5.Anti-penetration equipment
Type:RO-1000L
Equipment: Imported assembly
Quantity:1set
Equipment: (1)Its main body adopt American"DOW" low pressure compound film 8 Nos. with 1 meter stainless shell.
(2) Its adopt "TIANHAO" SMP2-150 vertical stainless steel high pressure pump.
(3) All framework and tube adopt stainless steel
(4) Metering display cabinet (digital conductivity Meter 2Nos. water flow meter 2set ,pressure gauge 2set ,PLC 1set ,pump switch 3Nos)
(5) IC microcomputer automatic control.
A. IC microcomputer washes when it start ,it washes automatically per 2 hours for 60 seconds.
B.With high&low pressure protection
C.With high pressure or liquid level control
D.With source water pump control
E.With electromagnetic valve control
F.With high pressure pump control
Cosmetic,Pharmaceutical,chemical industries,food,drinking water
Feature:
1、 Imported parts over 90%
2、 High operation automatization; Machine does not need to be guarded by worker,it will stop automatically when water is full and start when there is no water inside .Automatic controller washes front transitive material timely,IC microcomputer controller washes anti-penetration film automatically,raw material and pure water electrical conductivity is shown on line.
3、 American RO low pressure film.
4、 Producing pure water electrical conductivity≤10us/cm.
5、Anti-penetration desalinating rate≥99% ,whole machine desalinatiing rate≥98%.
Parameter:
Type Water producing quantity T/H Electric power Reclaim rate% Outlet electrical conductivity US/CM Film quantity Raw water electrical conductivity US/CM
FRO-0.5 0.5 0.75 50 3-8 2 ≤300
FRO-0.75 0.75 2.2 50 3-8 3 ≤300
FRO-1 1 2.2 75 3-8 4 ≤300
FRO-2 2.0 3.0 75 3-8 8 ≤300
FRO-2.5 2.5 3.0 75 3-8 10 ≤300
Structure:
1.Source water pump
Type: BLC120/150
Power:0.75 KW
Quantity: 1set
Origin: Guangdong
2.Multi-medium filter
Type:WCB-1465
Material: Imported stainless steel
Material of filter: Quartz sand
Equipment: U-PVC manual valve
3.Activated carbon filter
Type:WCB-1465
Material:Imported stainless steel
Material of filter: Quartz sand
Equipment:U-PVC manual valve
4. Precision filter
Material: stainless steel
Size:D220×H550
Filter: PP 5Nos. (3-5ц)
Quantity:1set
5.Anti-penetration equipment
Type:RO-1000L
Equipment: Imported assembly
Quantity:1set
Equipment: (1)Its main body adopt American"DOW" low pressure compound film 8 Nos. with 1 meter stainless shell.
(2) Its adopt "TIANHAO" SMP2-150 vertical stainless steel high pressure pump.
(3) All framework and tube adopt stainless steel
(4) Metering display cabinet (digital conductivity Meter 2Nos. water flow meter 2set ,pressure gauge 2set ,PLC 1set ,pump switch 3Nos)
(5) IC microcomputer automatic control.
A. IC microcomputer washes when it start ,it washes automatically per 2 hours for 60 seconds.
B.With high&low pressure protection
C.With high pressure or liquid level control
D.With source water pump control
E.With electromagnetic valve control
F.With high pressure pump control
