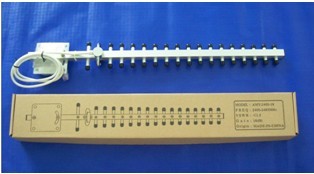

2.4ghz 18dbi Yagi Antenna

Detailed Product Description


yagi antenna
Aluminum Alloy frame
Full day for working
High gain ,low vswr,Long distance transmmison


18dbi 2.4GHz Yagi Antenna
High gain ,low VSWR,Long distance transmmison
Aluminum Alloy frame
Full day for working
Optimized dimension
Optional installation method Horizontal or Vertical
Applications
TV repeater system
Terminal TV receiving antenna
Village to Village project

Model NO. AMY-2400-2483-18
Electric Spec.
Frequency rang MHz 2400-2483
Gain-dBi 18
Bandwidth 83
Half-power beam width E side 28 H side 28
F/B ratio-dB ≥16
VSWR ≤1.5
InputImpedance -Ω 50
Polarization Horizontal or Vertical
Max power-W 100
Lightning protection DC ground
Connector model SMA female or others
Mechanical Specification
Antenna Length-mm 534
Cable length-m 1
Antenna weight-g 340
Square pipe dimension-mm 16*16*530 T=1
Round pipe dimension-mm Φ=8 T=1
Clamp U
Pole diameter -mm Φ40~Φ50
