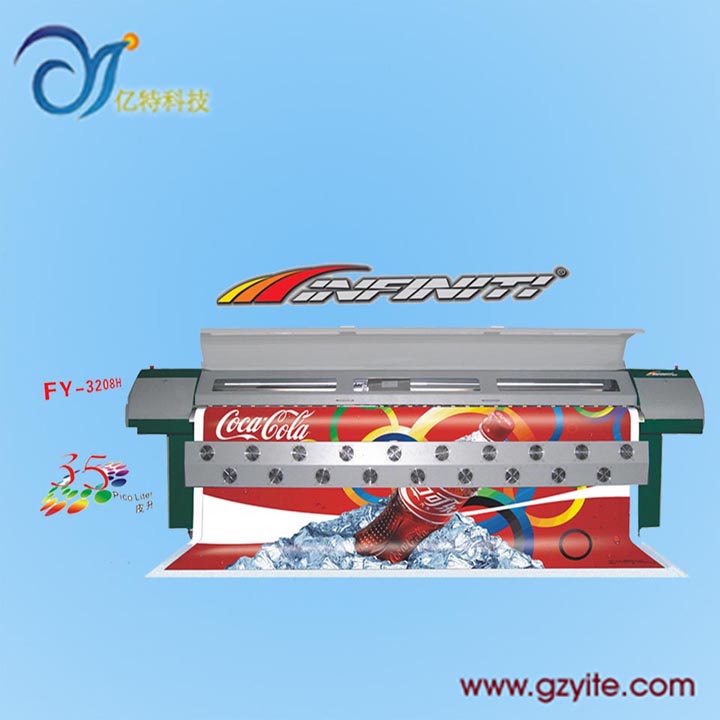

Large Formate Printer For Seiko Head

large format printer
1. automatic printhead capping device
2. 80 sqm/h
3. 1440 dpi
4. Seiko printhead...
large format printer

Model
FY-3208H
FY-3204H

Printhead
Drop on demand Piezo Head(SPT510-35PL)

Mumber of Printhead
8 Heads
4Heads

Maximun Print Width
3,200mm(125.98)

Print Speed*
101m2/hr 360X360dpi 1Pass
49m2/hr 360X360dpi 1Pass

76m2/hr 240X720dpi 2Pass
39m2/hr 240X720dpi 2Pass

51m2/hr 240x1080dpi 3Pass
27m2/hr 240x1080dpi 3Pass

34m2/hr 360x1080dpi 3Pass
18m2/hr 360x1080dpi 3Pass

26m2/hr 720x720dpi 4Pass
14m2/hr 720x720dpi 4Pass

Media
Max.width
3,300mm(129.92')

Max.Weight
120kg

Type
Frontlit,Backlit,Vinyl,Polyester,Window Film,Mesh,Leather,Backlit Film,Blue Back Paper

Thickness
4mm(Max.)

Heating System
3 way intelligent heater

Auto Media Feeding&

Take-up System
Equipped

Ink
Type
Solvent, Eco-Solvent

Capacity
1L or 5L per Color Main Tank

Auto Cleaning System
Positive Pressure Cleaning,Anti-Clogging Flash Function&Capping System

Print Interface
Optical Fiber

Power Specification
AC 220V/230V 50Hz/60Hz 2300W

Operational Environment
Temperature20°C-28°C Humidity40%-60%

Compatible RIP Software
Photoprint,UltraPrint,Topaz,Wasatch,Caldera,Maitop

Dimension

&Weight
Machine
L4,520mm X W860mm X H1,340mm

Packae
L4,630mm X W880mm X H1,050mm
