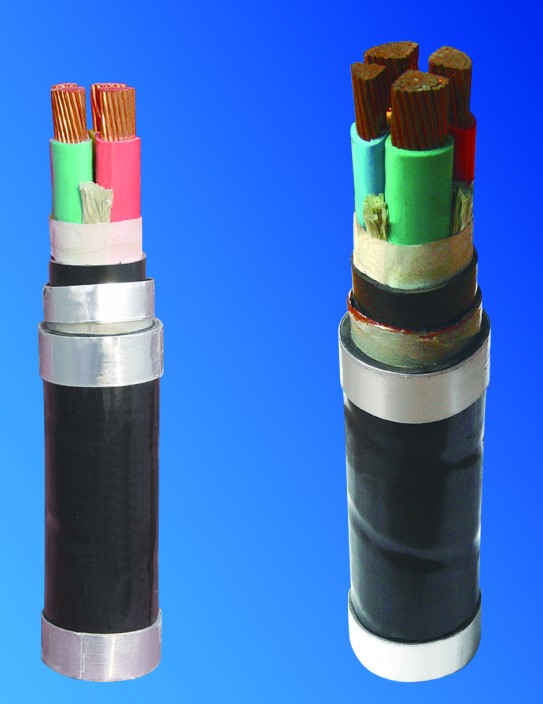

0.6/1kv Pvc Insulation Power Cable, Pvc Wire
0.6/1kv Pvc Insulation Power Cable, Pvc Wire, 002Item Code / Model Number:
002
0.6/1kv Pvc Insulation Power Cable, Pvc Wire
PVC insulation pwer cable is used to transmit and distribute power .AC rated voltage is 0.6/KV
PVC insulation power cable working conditions:
1.this maximum working temperature of the conductor is 70oC.
2.During having a short(lasting less than 5 seconds)the maximum temperature of the cable conductor shall not be above 160 oC.
3.Environment temperature should be no lower than 0 oC for laying the cable.
4.Bending radius allowance of the cable.
Single core cable:No steel tape cable 20D,Stell tape cable 15D.
3 cores cable:No steeel tape cable 15D,Steel tape cable 12D
Notes:D practical external diameter of cable
PVC insulation power cable working conditions:
1.this maximum working temperature of the conductor is 70oC.
2.During having a short(lasting less than 5 seconds)the maximum temperature of the cable conductor shall not be above 160 oC.
3.Environment temperature should be no lower than 0 oC for laying the cable.
4.Bending radius allowance of the cable.
Single core cable:No steel tape cable 20D,Stell tape cable 15D.
3 cores cable:No steeel tape cable 15D,Steel tape cable 12D
Notes:D practical external diameter of cable
- Payment Terms:
- L/C;T/T
- Standard / Certificates:
- CE,CCC,ISO
- Keywords:
- power cable, insulated cable, pvc coated cable
