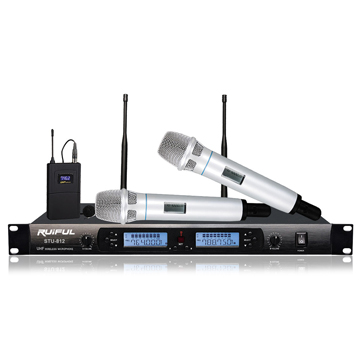

Stu-812

SYSTEM:
Frequency Range…………………………………………UHF 730~830MHz
Frequency Stabilization……………………………<±30ppm
Dynamic Range……………………………………………90dB
Total Harmonic Distortion…………………………<0.5%
Frequency Response……………………………………40Hz~20KHz±3dB
Audio Output Lever:
Separate Type……………………………………………0~±500mV
Mix Type……………………………………………………0~±300mV

Receiver:
Power Supply………………………………………………AC 100-240V / 45~60Hz
External DC Power:……………………………………16~20V
Consume Power……………………………………………5Watter
S/N Ratio……………………………………………………>90dB
Image Rejection…………………………………………>80dB
Border Upon Channel Rejection………………………>80dB
De-emphasis…………………………………………………5dBu(SINAD=20dB)

Transmitter
Transmiter Power…………………………………………10mW
Modulation Type……………………………………………FM
Max Deviation………………………………………………±50KHz
Spurious Emission…………………………………………> More than 40dB(With Carrier)
Battery Voltage……………………………………………AA 1.5×2
Battery Life……………………………………………… 6Hour
