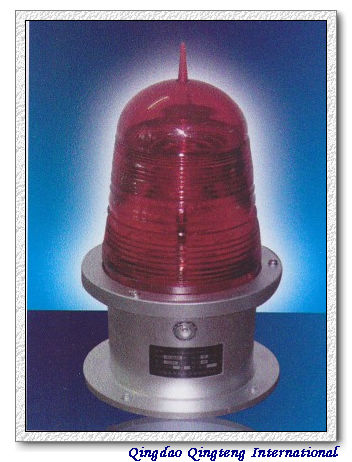

Aviation Obstruction Light/tower Light/aircraft Warning Light
Aviation Obstruction Light/tower Light/aircraft Warning LightItem Code / Model Number:
Aviation Obstruction Light/tower Light/aircraft Warning Light
Features
Built with multi-arrays LED source. Extremely long life up to 100,000 hours
Lampbase: made from die-casting aluminum alloy-----excellent resistance to corrosion
122mm Frensel lens molded with polycarbonate plastics —better light transmittance, unaffected by ultraviolet radiation and excellent resistance to shock(esp. hail) and acid
Standard interface/port, can set different position of constructure to achieve synchronized flash effect.
Photo-sensor -------- turn off at daytime and automatically turn on at nighttime or insufficient light
Light circuit controlled by microprocessor single-chip
Color Available in red,white,yellow,green
Bird spike on the top of dome
Parameter
Operating voltage AC220V-240V
Rated power <10w
Flash frequency 20-60 /min (adjustable)
Effective intensity 1500cd~2200cd
Light Source High-power LED
Life time >100,000hours
Light sensitivity 50~300LX
Working environment -40℃~+60℃
Protection Grade IP65
Size 400mm×180mm
Installation size Φ180mm pitchcircle Φ 160mm
Light net weight 2.5kg
Built with multi-arrays LED source. Extremely long life up to 100,000 hours
Lampbase: made from die-casting aluminum alloy-----excellent resistance to corrosion
122mm Frensel lens molded with polycarbonate plastics —better light transmittance, unaffected by ultraviolet radiation and excellent resistance to shock(esp. hail) and acid
Standard interface/port, can set different position of constructure to achieve synchronized flash effect.
Photo-sensor -------- turn off at daytime and automatically turn on at nighttime or insufficient light
Light circuit controlled by microprocessor single-chip
Color Available in red,white,yellow,green
Bird spike on the top of dome
Parameter
Operating voltage AC220V-240V
Rated power <10w
Flash frequency 20-60 /min (adjustable)
Effective intensity 1500cd~2200cd
Light Source High-power LED
Life time >100,000hours
Light sensitivity 50~300LX
Working environment -40℃~+60℃
Protection Grade IP65
Size 400mm×180mm
Installation size Φ180mm pitchcircle Φ 160mm
Light net weight 2.5kg
- Place of Origin:
- China
- Keywords:
- aviation light, obstruction light, tower light
