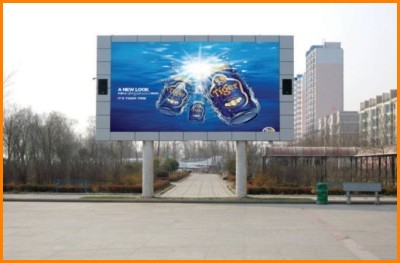

No. Specs Ph20mm Outdoor Advertising Led Display

No. Specs PH20mm Outdoor led display

Advantages

1) Personalized service and standard service, Design as your Ideas
2) High intensity and can be adjusted, so can meet the request of the customers according the application environment.
3) Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light
4) To pictures and character, have clear, exquisite and real display effect
5) Big viewing angle to 110 degree at horizontal line, 60 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion
6) Can repair each led lamps, so the cost of maintain is lower, and easy to repair.

Products Outdoor electronic advertising board

1) Price Advantage: we have the best competitive price at the market, also have the same even better quality.
2) Performance Advantage: Best Equality, high consistency, Big viewing angle, can repair each led lamps
3) Quality advantage: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability.
4) Service advantage: Better service at same situation, better cooperation at same service!
Products application area:
1) Outdoor LED display: Equally or compactly make the red, green, blue color in one dot, equally distribute at the panel, so make the whole display
2) Usually apply for physical sports, advertisement, bank, stock exchange, station, port, marketplace, telecommunication, department, school, monitor, restaurant, entertainment


No.
specs
outdoor full color PH20mm
1
Pixel configuration
2R1G1B
2
Pixel pitch
20mm
3
Model size
320*160mm
4
Module Resolution
16*8pixel
5
Max power consumption
600W/m2
6
Cabinet Weight
70kg/m2
7
Pixel Density
2500pixels/m2
8
Screen brightness
more than 6500cd/m²
9
Display color
16.7 million
10
Viewing angle
H/V 110/45
11
Brightness adjustment
Brightness of R,G,B adjustable by the software 256 grades
12
Best Viewing Distance
17m
13
Signal Input
Composite ,S-video,Component,VGA,DVI,HDMI,SDI,HD_SDI,etc
14
Drive mode
static
15
Frame Frequency
60--85HZ
16
Refresh Rate
360--1000HZ
17
Controlling system
PCTV non-linear editing card+DVI display card+main controller card+optical fiber transmission (Optional)
18
Controlling Distance
By CAT5 Cable:100M, Multi-Mode fiber: 500M, Single-Mode fiber : 10 KM
19
Color temperature
5000--9300K
20
Working Humidity
10-90%RH
21
Life Span
100,000 Hours
22
MTBF (Ave No Failure Time)
5000 Hours
23
Pixel failing Rate
0.01%
24
IP Rate
IPH65(Front Side),IPH54(Back Side)
25
Temperature
-20~+65


Full Color
