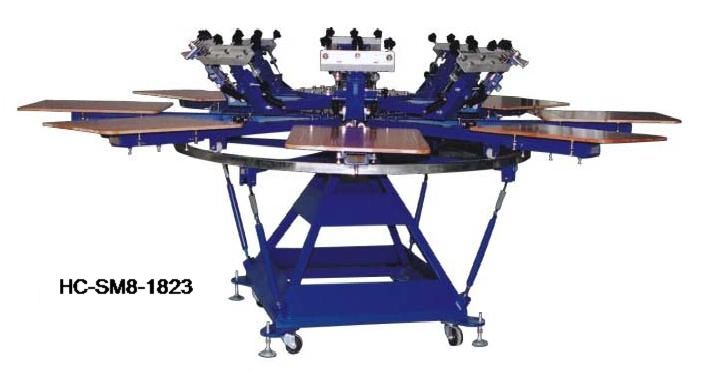

Manual 8 Color 8 Press T Shirt Screen Printer
Manual 8 Color 8 Press T Shirt Screen PrinterContinuous Selling Item
Manual 8 Color 8 Press T Shirt Screen Printer
HC-SM8-1823 Manual 8 color 8 station spider machine
1) Worktable size: 20*25 inch (500*650mm)
2) Max print size: 18*23 inch (450*600mm
3) Max print speed: 800pcc/H
4) Max print thickness: 0-20 MM
5) Print color number: 8
6) Max height of screen frame: 1.57 inch (40mm)
7) Max size of screen plate: 21*26 inch (550*680mm)
8) Drying mode: IR
9) Wattage of heater: 6KW
10) Positioning system: Mechanical position
11) Power source: Manual,without electricity
12) Lead rail circle diameter: φ1600mm
Features:
1) 8 color screen printing machine with high strength, good rigidity tensile support and full steel design to ensure longer life.
2) Center vertical shaft type structure design to rotate smoothly, reduce labor intensity.
3) Screen frame with rotatable arrangement to make operator work alone or cooperate with two or more people, so high efficiency printing come true.
4) Worktable can be moved around.
5) Screen plate can also be moved around, the front of screen plate can be fine adjusted up and down, and overprint precision is 0.025mm.
6) IR dryer make ink dry fast.
1) Worktable size: 20*25 inch (500*650mm)
2) Max print size: 18*23 inch (450*600mm
3) Max print speed: 800pcc/H
4) Max print thickness: 0-20 MM
5) Print color number: 8
6) Max height of screen frame: 1.57 inch (40mm)
7) Max size of screen plate: 21*26 inch (550*680mm)
8) Drying mode: IR
9) Wattage of heater: 6KW
10) Positioning system: Mechanical position
11) Power source: Manual,without electricity
12) Lead rail circle diameter: φ1600mm
Features:
1) 8 color screen printing machine with high strength, good rigidity tensile support and full steel design to ensure longer life.
2) Center vertical shaft type structure design to rotate smoothly, reduce labor intensity.
3) Screen frame with rotatable arrangement to make operator work alone or cooperate with two or more people, so high efficiency printing come true.
4) Worktable can be moved around.
5) Screen plate can also be moved around, the front of screen plate can be fine adjusted up and down, and overprint precision is 0.025mm.
6) IR dryer make ink dry fast.
- Place of Origin:
- China
- Brand:
- Hc
- Unit Price:
- USD 3600
- Port:
- FOB Shenzhen
- Payment Terms:
- L/C;T/T;Cash
- Delivery Time:
- 30
- Min Order Quantity:
- 1 pc
- Standard / Certificates:
- ISO9001-2000
