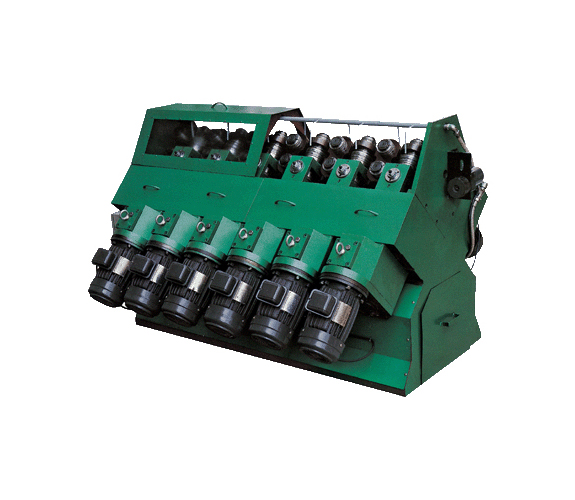

Lfs27-q01 Series Pipe Shrinking Machine For Heating Elementfor Tubular Heater /heating Element

LFS27-Q01 pipe rolling machine for heater element is a new genereation product according to the marketing ressearch.
main functions:

1.It uses the bed the whole technology. Make its use more stable, lasting precision.

2.Each of the roller speed changes with pipe diameter. Enable compression and extension of the variations tend to match.

3.It’s not easy to shrink tube pipe blockage in the pipe elongation ratio constant shrinkage tube machines increased by 5%.

4.Equipped with a fixed size trench roller R series, tube geometry after compression high accuracy and ovality at ≤ 0.04 is electric heating pipe manufacturing industry.



main technical parameters:

1, Power source: Three-phase AC 380V, 50Hz

2,Power input: 08: 6kW 10: 7.5kW 12: 9kW (12 sections)

3,Two roller round theory center distance: 99mm

4,Two roller round center distance adjustment quantity: ±1.0

5, Pipe speed: 18m/min

6, Pipe scope: φ5~14

7, External dimensions: 08: 1340x1600x1100mm

10: 1340x1600x1100mm

12: 1800x1640x1180mm

8, Weight: 08: 1.6t 10: 2t 12: 2.4t
